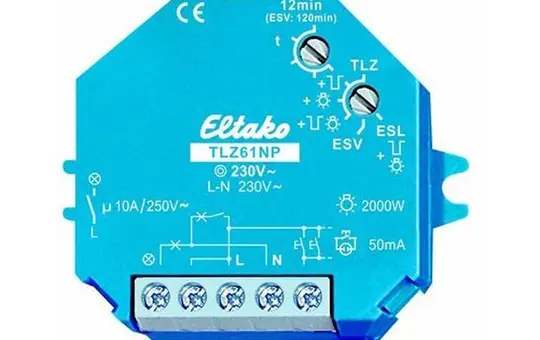

ELTAKO TLZ61NP-230V Staircase Light Timer Switch 1S, 230V AC

ELTAKO TLZ61NP-230V Staircase Light Timer Switch | 1S, 230V AC

Manufacturer: ELTAKO
Article no.: 20032657
EAN: 4010312400791
Manufacturer item number: 61100102
Manufacturer type: TLZ61NP-230V
Weight: 0,043 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Staircase Light Timer TLZ61NP-230V


Electronic function with switch-off pre-warning, installation type flush-mounted, width in modular units 0, installation depth 18 mm, number of contacts as normally closed contact 1, number of contacts as normally open contact 0, number of contacts as changeover contact 0, control voltage 1 230 ... 230 V, control voltage type 1 AC, control voltage frequency 1 50 ... 50 Hz, rated switching current 10 A, drop-out delay 1 ... 12 min, push-button glow lamp current 50 mA, circuit type 3- and 4-wire circuit, switch-off pre-warning flicker, subsequent switching subsequently switchable + continuous light + time extension, supply voltage 250 ... 250 V, supply voltage type AC, max. incandescent lamp load 2000 W, max. fluorescent lamp load 1000 VA, max. fluorescent lamp load (duo circuit) 1000 VA, max. fluorescent lamp load (parallel compensated) 500 VA, max. switching capacity LED 200 W,
Brand
ELTAKO
Class
Staircase lighting units
Control voltage
230V
Division units
0 TE
Manufacturer item number
61100102
Manufacturer type
TLZ61NP-230V
Mounting type
flush-mounted
Rated current in A
10
