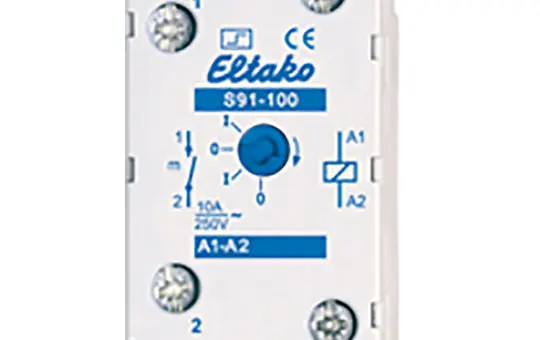

ELTAKO S91-100-8V Impulse Switch 8 V Flush-Mounted | 10A, 1S

Manufacturer: ELTAKO

Article no.: 20010634

EAN: 4010312103500

Manufacturer item number: 91100010

Manufacturer type: S91-100-8V

Weight: 0,07 kg

Available on request

pcs

Impulse switch for flush-mounted/surface-mounted installation 1S 10A S91-100-8V

Function: other

Mounting type: surface-mounted

Width in modular units: 2.3

Installation depth: 32 mm

Number of contacts as normally closed: 1

Number of contacts as normally open: 0

Number of contacts as changeover: 0

Control voltage 1: 8 ... 8 V

Control voltage type 1: AC

Control voltage frequency 1: 50 ... 50 Hz

Rated switching current: 10 A

Max. incandescent lamp load: 2300 W

Max. fluorescent lamp load: 2300 VA

Max. fluorescent lamp load (dual circuit): 2300 VA

Max. fluorescent lamp load (parallel compensated): 500 VA

Max. switching current (cos phi = 0.6): 10 A

Suitable for manual operation

Brand: ELTAKO
Class: relay
Configuration: Power relay
Manufacturer item number: 91100010
Manufacturer type: S91-100-8V
Rated current in A: 10
Switch contact: 1 closer
