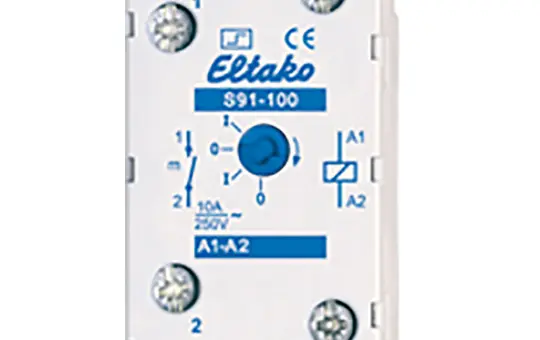

ELTAKO S91-100-230V Impulse Relay Switch 230 V Flush-Mounted | 10A, 1S

Manufacturer: ELTAKO

Article no.: 20010635

EAN: 4010312103531

Manufacturer item number: 91100030

Manufacturer type: S91-100-230V

Weight: 0,07 kg

In stock

Delivery: 2-3 business days

pcs

Impulse switch for flush-mounted/surface-mounted installation 1S 10A S91-100-230V

Function: other
Mounting type: surface-mounted
Width in modular units: 2.3
Installation depth: 32 mm
Number of contacts as normally closed: 1
Number of contacts as normally open: 0
Number of contacts as changeover: 0
Control voltage 1: 230 ... 230 V
Control voltage type 1: AC
Control voltage frequency 1: 50 ... 50 Hz
Rated switching current: 10 A
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA
Max. fluorescent lamp load (dual circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 500 VA
Max. switching current (cos phi = 0.6): 10 A
Suitable for manual operation

Brand: ELTAKO
Class: relay
Configuration: Power relay
Control voltage: 230V
Manufacturer item number: 91100030
Manufacturer type: S91-100-230V
Rated current in A: 10
Switch contact: 1 closer

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: ELTAKO
Class: relay
Configuration: Power relay
Control voltage: 230V
Manufacturer item number: 91100030
Manufacturer type: S91-100-230V
Rated current in A: 10
Switch contact: 1 closer
