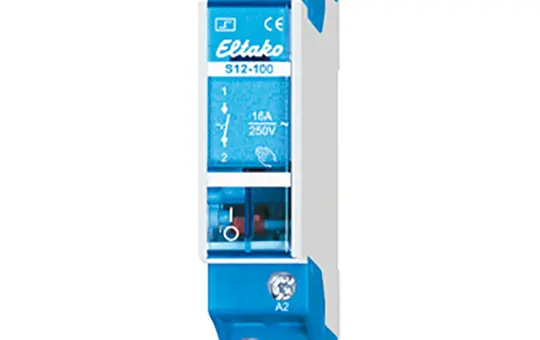

ELTAKO S12-100-230V Impulse Relay 230 V REG | 16A, 1S

Manufacturer: ELTAKO

Article no.: 20010580

EAN: 4010312100479

Manufacturer item number: 21100030

Manufacturer type: S12-100-230V

Weight: 0,095 kg

In stock

Delivery: 2-3 business days

pcs

Impulse relay for series. 1S 16A S12-100-230V

Function other, mounting type DIN rail, width in modular units 1, installation depth 55 mm, number of contacts as normally closed contact 1, number of contacts as normally open contact 0, number of contacts as changeover contact 0, control voltage 1 230 ... 230 V, control voltage type 1 AC, control voltage frequency 1 50 ... 50 Hz, rated switching current 16 A, max. incandescent lamp load 2300 W, max. fluorescent lamp load 2300 VA, max. fluorescent lamp load (dual circuit) 2300 VA, max. fluorescent lamp load (parallel compensated) 500 VA, max. switching current (cos phi = 0.6) 10 A, suitable for manual operation,

Brand: ELTAKO
Class: relay
Configuration: Power relay
Control voltage: 230V
Division units: 1 TE
Manufacturer item number: 21100030
Manufacturer type: S12-100-230V
Rated current in A: 16
Switch contact: 1 closer

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: ELTAKO
Class: relay
Configuration: Power relay
Control voltage: 230V
Division units: 1 TE
Manufacturer item number: 21100030
Manufacturer type: S12-100-230V
Rated current in A: 16
Switch contact: 1 closer
