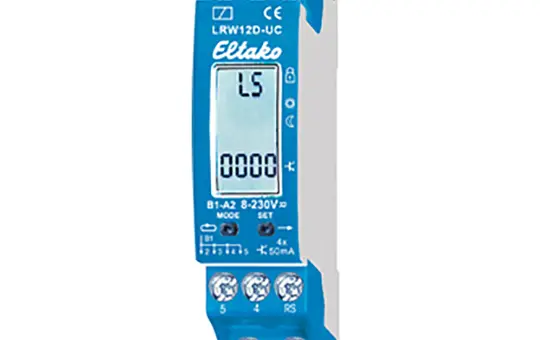

ELTAKO LRW12D-UC digital sensor relay REG | 8-230V

Manufacturer: ELTAKO

Article no.: 20010640

EAN: 4010312206553

Manufacturer item number: 22400501

Manufacturer type: LRW12D-UC

Weight: 0,11 kg

In stock

Delivery: 2-3 business days

pcs

Sensor relay LRW12D-UC

Mounting type DIN rail, function sensor module, presence simulation, number of universal dimming channels 0, number of dimming functions 0, impulse function, number of channels 0, roller shutter/sunshade control, number of channels 3, wind sensor 16 ... 4 m/s, brightness sensor 1000 ... 60000 lx, twilight sensor 1000 ... 60000 lx, number of channels 3, control voltage 1 8 ... 230 V, control voltage type 1 AC/DC, rated current 0.05 A, max. switching current (cos phi = 0.6) 0.05 A, rated voltage 8 ... 230 V, protection rating (IP) IP20, width in modular units 1, width 36 mm, height 62 mm, depth 58 mm,

Brand: ELTAKO
Class: relay
Control voltage: 230V
Division units: 1 TE
Manufacturer item number: 22400501
Manufacturer type: LRW12D-UC

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: ELTAKO
Class: relay
Control voltage: 230V
Division units: 1 TE
Manufacturer item number: 22400501
Manufacturer type: LRW12D-UC

Documents
