ELTAKO 31100002 Powerline Blind Actuator for 1 motor

ELTAKO 31100002 Powerline Blind Actuator | for 1 motor

Manufacturer: ELTAKO
Article no.: 20066336
EAN: 4010312316689
Manufacturer item number: 31100002
Manufacturer type: PL-SAM2
Weight: 0,062 kg
Available on request
Electrical appliance take-back
pcs

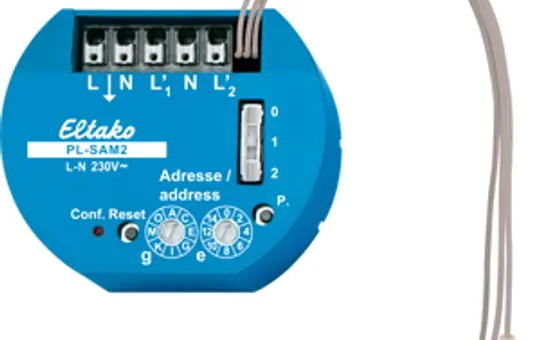

Powerline blind actuator for 1 motor. 53x43 mm, 25 mm deep, for installation in 58 mm switch boxes. 1+1 normally closed contacts for motors up to 3 A. 2 sensor inputs with internal low voltage. Stand-by loss only 0.5 watts. For control and switching at the same location. Use only potential-free switching elements. Internal low voltage at the sensor inputs. The control inputs can be used for a blind pushbutton or a blind switch. The running time is preset to 120 seconds and can be changed with the PC software SIENNA-Professional. For address assignment, there are two rotary switches on the front: The left rotary switch sets the group address g with 16 alphabetical values from A to P. The right rotary switch sets the element address e with 16 numerical values from 0 to 15. Above them is a slide switch as a configuration switch with positions 0, 1, and 2. Position 0: Start and stop with blind pushbutton.
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Binary inputs integrated
No
Blinds
Yes
Bluetooth
No
Brand
ELTAKO
Casambi
No
Class
Blind actuators
DALI
No
Dimming
No
ENOcean
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Manufacturer item number
31100002
Manufacturer type
PL-SAM2
Mounting type
flush-mounted
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
Sun position calculation
No
Switch
Yes
Theben LUXORliving
No
Type of transmission
Cable
Wiser Home
No
with Netatmo
No
Zigbee
No
Manufacturer information
ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
