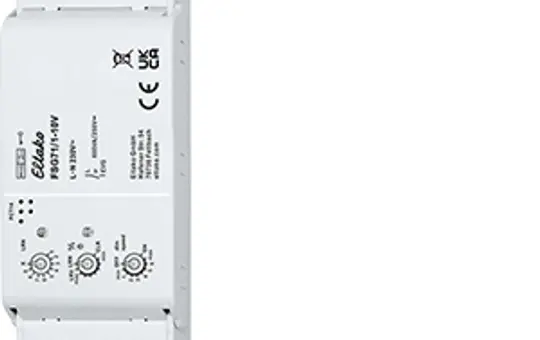

ELTAKO 30100841 Radio actuator dimmer switch control unit 1 closer

ELTAKO 30100841 Radio actuator dimmer switch control unit | 1 closer

Manufacturer: ELTAKO
Article no.: 20066311
EAN: 4010312316283
Manufacturer item number: 30100841
Manufacturer type: FSG71/1-10V
Weight: 0,136 kg
Available on request
Electrical appliance take-back
pcs
Dimming switch control unit for EVG 1-10V, 1 normally closed contact non-potential free 600VA and 1-10V control output 40mA. Minimum brightness and dimming speed adjustable. With children’s room, snooze, and light alarm clock functions as well as constant light control and master-slave operation. Additionally with lighting scene control via PC or with wireless push buttons. Encrypted radio, bidirectional radio, and repeater function can be activated. Stand-by loss only 1 watt. Installation in the 230V mains connection cable, for example in suspended ceilings and luminaires. 166mm long, 46mm wide, and 31mm high. With cable strain relief. Circuit operates at zero crossing to protect contacts. Also for controlling LED converters with passive 1-10V interface without auxiliary voltage up to 0.6mA. Above that with auxiliary voltage. The set brightness level is saved when switched off (memory).
Active power measurement
No
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Blinds
No
Bluetooth
No
Brand
ELTAKO
Casambi
No
Class
Dimming actuators
Color control
-
Connection type CC
-
DALI
No
DALI Device Type
-
DALI-2
No
Day/night function
Yes
Different bus system
No
Different phases can be connected
No
Dimming
Yes
Dimming method
Phase lead/edge
ENOcean
Yes
Extension entrance
No
Fan coil
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Home Assistant
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Local/manual operation
No
Manufacturer item number
30100841
Manufacturer type
FSG71/1-10V
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Series installation
Number of outputs
1
Output current in mA
40
Output power in W
600
Parallel operation of channels possible
No
Rated voltage outputs
230V AC
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
Size of connection terminal in mm2
2.5
Switch
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
radio
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
Manufacturer information
ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
