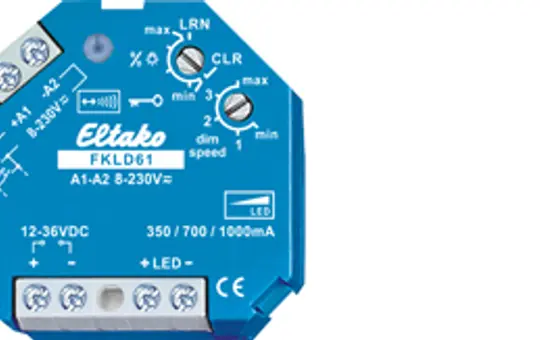

ELTAKO 30100836 Radio actuator constant current LED dimmer switch standard

ELTAKO 30100836 Radio actuator constant current LED dimmer switch | standard

Manufacturer: ELTAKO
Article no.: 20066310
EAN: 4010312314357
Manufacturer item number: 30100836
Manufacturer type: FKLD61
Weight: 0,06 kg
Available on request
Electrical appliance take-back
pcs
DC constant current source for LEDs up to 1000mA or 30 watts. Stand-by loss only 0.3 watts. Minimum brightness and dimming speed adjustable. With children’s room and snooze function. Additionally with light scene control via PC or radio push-buttons. Encrypted radio, bidirectional radio, and repeater function can be activated. For flush mounting. 45mm long, 45mm wide, 33mm deep. The nominal output current can be set with a jumper on the circuit board: no connection: 350mA, right-aligned (pin 2-3 connected): 700mA, left-aligned (pin 1-2 connected): 1000mA. Factory setting 700mA. The input voltage range is from 12V DC up to a maximum of 36V DC. The input voltage must be chosen above the sum of the LED voltage at the output so that the current regulation can work. This control difference must be at least 6 volts. The total power output current x output voltage must not exceed 30 watts.
Active power measurement
No
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Blinds
No
Bluetooth
No
Brand
ELTAKO
Casambi
No
Class
Dimming actuators
Color control
-
Connection type CC
-
DALI
No
DALI Device Type
-
DALI-2
No
Day/night function
Yes
Different bus system
No
Different phases can be connected
No
Dimming
Yes
Dimming method
PWM constant current CC
ENOcean
Yes
Extension entrance
No
Fan coil
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Home Assistant
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Local/manual operation
No
Manufacturer item number
30100836
Manufacturer type
FKLD61
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of outputs
1
Output current in mA
1000
Output power in W
30
Parallel operation of channels possible
No
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
Switch
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
radio
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
Manufacturer information
ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/
