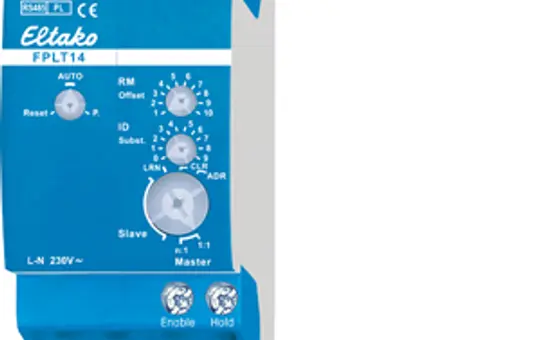

ELTAKO 30014078 Radio Powerline Tunnel Gateway Unidirectional and bidirectional

ELTAKO 30014078 Radio Powerline Tunnel Gateway | Unidirectional and bidirectional

Manufacturer: ELTAKO
Article no.: 20066101
EAN: 4010312317723
Manufacturer item number: 30014078
Manufacturer type: FPLT14
Weight: 0,12 kg
Available on request
Electrical appliance take-back
pcs
Radio powerline tunnel gateway. Uni- and bidirectional. Standby loss only 0.4 watts. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 2 modular units = 36 mm wide, 58 mm deep. Supply voltage: 230 V. Connection to the ELTAKO RS485 bus. Cross-wiring of bus and power supply with plug bridge. This gateway transmits RS485 bus telegrams via powerline over long distances through the power network. At least 2 FPLT14 units are required for this. Unidirectionally, up to 10 FPLT14 can send the bus telegrams of their FAM14/FTS14KS installation via powerline through the power network to another FAM14/FTS14KS installation with an FPLT14 there. Up to 120 telegram IDs can be taught in according to the operating instructions, also with PCT14. Bidirectionally, 2 FPLT14 can exchange the bus telegrams of 2 FAM14/FTS14KS installations via powerline through the power network. Up to 120 telegram IDs can be taught in according to the operating instructions, also with PCT14.
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Bluetooth
No
Brand
ELTAKO
Casambi
No
DALI
No
Division units
2 TE
ENOcean
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Manufacturer item number
30014078
Manufacturer type
FPLT14
Mounting type
Series installation
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Type of transmission
radio
Wiser Home
No
with Netatmo
No
Zigbee
No
Manufacturer information
ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/
