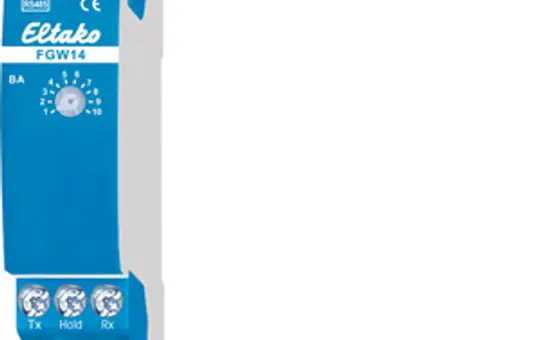

ELTAKO 30014017 RS485 bus multiple gateway Standard

ELTAKO 30014017 RS485 bus multiple gateway | Standard

Manufacturer: ELTAKO
Article no.: 20066060
EAN: 4010312313855
Manufacturer item number: 30014017
Manufacturer type: FGW14
Weight: 0,125 kg
Available on request
56,87 €
incl. VAT + shipping
pcs
Multiple gateway. Bidirectional. Standby loss of only 0.5 watts. Modular device for mounting on DIN-EN 60715 TH35 rails. 1 module = 18 mm wide, 58 mm deep. The gateway is only 1 module wide, yet can be used multiple times: for coupling up to three FEMs, for direct connection to a PC via the RS232 interface, for connection to the bus components of the older Series 12, or as a bus connector for two Series 14 RS485 buses. Connection to the ELTAKO RS485 bus. Cross-wiring of the bus and power supply with a jumper. Operation in conjunction with FAM14 or FTS14KS. The hold terminal is connected to the FAM14 or FTS14KS. FEM radio receiver modules are connected in parallel to the RSA2 and RSB2 sub-bus terminals and the GND and +12V power supply terminals. Up to 10 FTS12EM push-button input modules are connected in series to the RSA2 and RSB2 sub-bus terminals, if necessary, in series with FEM radio receiver modules.
Brand
ELTAKO
Class
Modbus gateway
Different bus system
-
Division units
1
Manufacturer item number
30014017
Manufacturer type
FGW14
Mounting type
Series installation
Type of transmission
Cable
Manufacturer information
ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/
