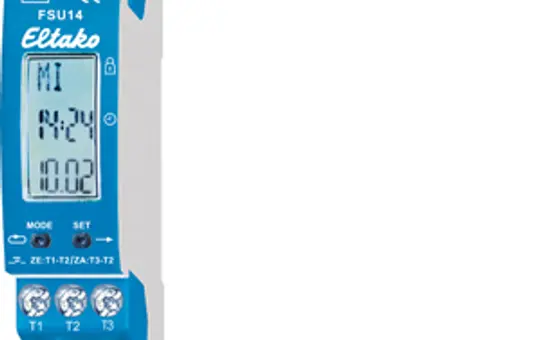

ELTAKO 30014015 RS485 bus display timer 8 channels

ELTAKO 30014015 RS485 bus display timer | 8 channels

Manufacturer: ELTAKO
Article no.: 20066058
EAN: 4010312313831
Manufacturer item number: 30014015
Manufacturer type: FSU14
Weight: 0,125 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Display timer switch with 8 channels for the ELTAKO-RS485 bus.

With astro function. Stand-by loss only 0.1 watts. Modular device for installation on DIN-EN 60715 TH35 mounting rails. 1 module width = 18 mm wide, 58 mm deep. Connection to the ELTAKO-RS485 bus, cross-wiring of bus and power supply with plug bridge.

For the operation of the FSU14 timer switch, it is necessary that a device address is assigned by the radio antenna module FAM14, as described in the operating instructions. The switching commands of the channels can be taught into bus actuators and radio actuators. Up to 60 timer memory slots are freely distributed across the channels.

With date and automatic daylight saving time/winter time changeover. Power reserve without battery approx. 20 days. Each memory slot can be assigned either to the astro function (automatic switching according to sunrise or sunset) or the time function. The astro on/off time can be shifted by ± 2 hours.
Amazon Alexa
No
Annual program
Yes
Apple HomeKit
No
Astro program
Yes
BAB-Tec
No
Bluetooth
No
Brand
ELTAKO
Casambi
No
Class
timers
Daily program
Yes
DALI
No
Division units
1 TE
ENOcean
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Installation location
distribution cabinet
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Manufacturer item number
30014015
Manufacturer type
FSU14
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Type of transmission
Cable
Weekly program
Yes
Wiser Home
No
with Netatmo
No
Zigbee
No
Manufacturer information
ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/
