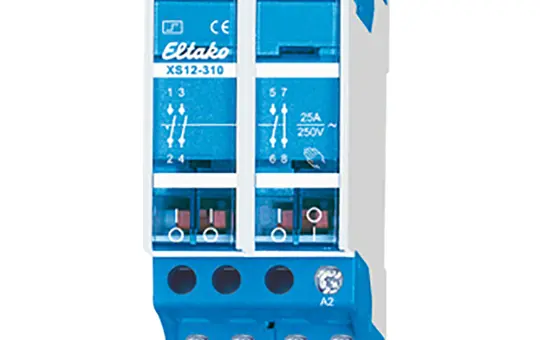

ELTAKO 21310930 impulse switch 230 V REG 25A, 3S+1NC

ELTAKO 21310930 impulse switch 230 V REG | 25A, 3S+1NC

Manufacturer: ELTAKO
Article no.: 20010589
EAN: 4010312101704
Manufacturer item number: 21310930
Manufacturer type: XS12-310-230V
Weight: 0,16 kg
Available on request
41,26 €
incl. VAT + shipping
pcs
Impulse switch 3S1Ö 25A XS12-310-230V Function other, Mounting type DIN rail, Width in modular spacing 2, Installation depth 55mm, Number of contacts as normally open contact 3, Number of contacts as normally closed contact 1, Number of contacts as changeover contact 0, Control voltage 1 230 ... 230V, Control voltage type 1 AC, Frequency of control voltage 1 50 ... 50Hz, Rated switching current 25A, Max. incandescent lamp load 2300W, Max. fluorescent lamp load 3600VA, Max. fluorescent lamp load (duo circuit) 3600VA, Max. fluorescent lamp load (parallel compensated) 1000VA, Max. switching current (cos phi = 0.6) 15A, Suitable for manual operation,
Brand
ELTAKO
Class
relay
Configuration
Power relay
Control voltage
230V
Division units
2
Manufacturer item number
21310930
Manufacturer type
XS12-310-230V
old Voltus number
1043574
Rated current in A
25.00

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt
Manufacturer information
ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/
