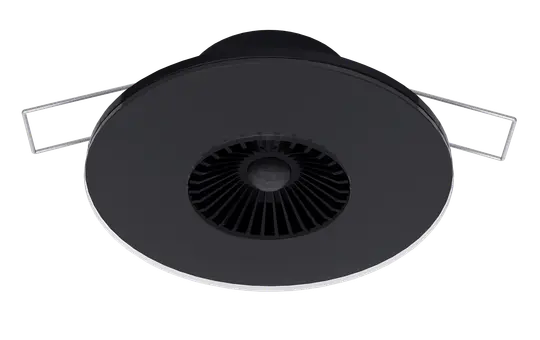

ELSNER 70682 KNX Presence Detector Brightness, temperature, humidity | black

ELSNER 70682 KNX Presence Detector | Brightness, temperature, humidity | black

Manufacturer: ELSNER
Article no.: 20011366
EAN: 4051996706823
Manufacturer item number: 70682
Manufacturer type: 70682
Weight: 0,2 kg
Available on request
Electrical appliance take-back
pcs
The sensor offers brightness measurement and control, motion detection, as well as adjustable threshold values. It features 4 AND and 4 OR logic gates, temperature and humidity measurement with dew point calculation, and PI controllers for heating and ventilation.

Technical data: Housing made of plastic and glass, IP30, approx. Ø 80 mm, surface-mounted depth approx. 5 mm, flush-mounted depth approx. 31 mm. Operating temperature: -20°C to +60°C, storage: -20°C to +70°C. Operating voltage: KNX bus voltage, max. 10 mA bus current. Data output via KNX +/- bus terminal. Maximum 254 group addresses and assignments, 252 communication objects. Brightness sensor: measuring range 0 lux – 2,000 lux, motion sensor with detection angle approx. 94 × 82 degrees and range approx. 5 m. Temperature sensor: -20°C to +60°C, humidity sensor: 0% RH to 100% RH.

Included in delivery: sensor, pre-assembled terminals for hollow ceiling installation, mounting ring for flush mounting, data sheet and manual in several languages as a download.
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
BAB-Tec
No
Bluetooth
No
Brand
ELSNER
Brightness sensor
Yes
Casambi
No
Class
Presence detector
CO2 sensor
No
Colour
black
Crawl protection
No
DALI
No
DALI-2
No
Detection angle in °
360
Detection area
circular
Detection type/sensor type
Passive infrared
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
5
Gira One
No
Hager KNXeasy
No
Humidity sensor
Yes
Installation height in m
2.5
Installation location
Ceiling
Integrated constant light control
Yes
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
LED night light
No
Manufacturer item number
70682
Manufacturer type
70682
Manufacturer's colour
black
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
cavity wall
Number of areas
1
Protection class (IP)
IP30
Reach laterally in m
5
Remote controllable
No
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
Manufacturer information
ELSNER
Elsner Elektronik GmbH
Sohlengrund 16
75395  Ostelsheim
DE

info@elsner-elektronik.de
www.elsner-elektronik.de/de
