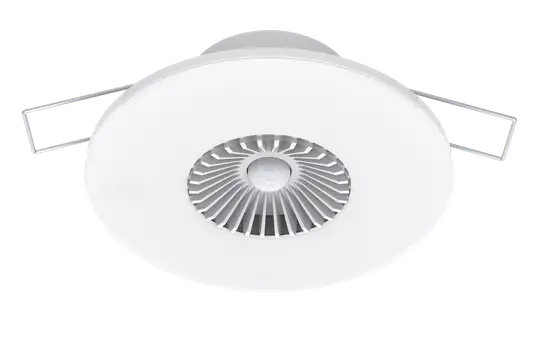

ELSNER 70681 KNX presence detector Brightness, temperature, humidity | white

ELSNER 70681 KNX presence detector | Brightness, temperature, humidity | white

Manufacturer: ELSNER
Article no.: 20041668
EAN: 4051996706816
Manufacturer item number: 70681
Manufacturer type: Intra Sewi KNX TH-L Pr reinweiß
Weight: 0,011 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
275,49 €
incl. VAT + shipping
pcs
The Intra-Sewi KNX L-Pr sensor is an integrated solution for the KNX building bus system that detects both brightness and occupancy in a room. An enhanced version, the Intra-Sewi KNX TH-L-Pr, offers additional functionality by measuring temperature and humidity and calculating the dew point. This sensor can receive external temperature and humidity values ​​via the bus and combine them with its own data to create overall values ​​such as room averages. Thanks to integrated PI controllers, it controls ventilation (humidification and dehumidification) and heating/cooling based on the measured temperature and humidity values. Another useful feature is the ability to send warnings to the bus when the comfort level according to DIN 1946 is exceeded. The sensor also offers the function of manipulated variable comparisons to compare received values ​​and trigger appropriate actions.
Brand
ELSNER
Brightness sensor
Yes
Class
Presence detector
Color
white
Detection angle in °
360
Detection area
circular
Detection type/sensor type
Passive infrared
Different bus system
-
Frontal range in m
5.00
Humidity sensor
Yes
Installation height in m
2.50
Installation location
Ceiling
Integrated constant light control
Yes
KNX
Yes
KNX-TP
Yes
Manufacturer item number
70681
Manufacturer type
Intra Sewi KNX TH-L Pr reinweiß
Manufacturer's color
white
Mounting type
Cavity wall
Number of areas
1
old Voltus number
1699285
Protection class (IP)
IP30
Reach laterally in m
5.00
suitable for ceiling mounting
Yes
Surface
matt
Temperature sensor
Yes
Type of transmission
Cable
Manufacturer information
ELSNER
Elsner Elektronik GmbH
Sohlengrund 16
75395  Ostelsheim
DE

info@elsner-elektronik.de
www.elsner-elektronik.de/de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
