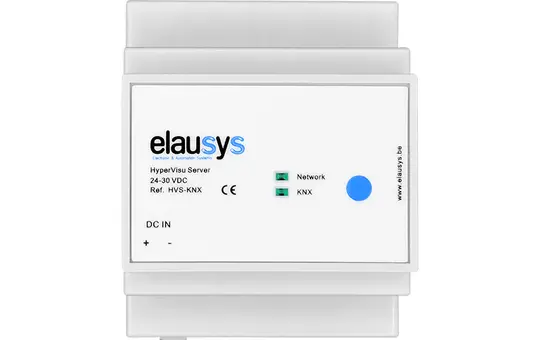

ELAUSYS HyperVisu Server | Standard

Manufacturer: ELAUSYS

Article no.: 20101996

EAN: 5430005369201

Manufacturer item number: HVS-KNX

Manufacturer type: HVS-KNX

Weight: 0,2 kg

Available on request

pcs

HyperVisu visualisation server for KNX installations, available in three versions – HOME (2 GB RAM), PRO (4 GB) and MAX (8 GB). It runs on the customer’s network, connects to the bus via a KNX/IP interface, supports Modbus TCP, MQTT, BACnet/IP, HTTP, TCP/UDP and Sonos, hosts not only the visualisation but also Home Assistant, Node-RED, Grafana and an MQTT broker, and is operated via the native HyperVisu app on smartphone, tablet as well as 10-inch and 4-inch wall panels.

Functions

- All devices, one app. Lighting (on/off, dimming, adjustable white, RGB), blinds with position and slat tilt control, heating and cooling with comfort/standby/night modes and weekly schedules, air conditioning and ventilation, cameras and video door intercoms, door locks and gates, meters and sensors, e-car charging station, Sonos audio.

- Organised as people think. Rooms, categories, favourites – and views: custom dashboards containing exactly the cards each user wants. Navigation as tiles or list, with global commands just a fingertip away.

- Energy the customer can react to. Solar power generation, battery charge status, grid feed-in and feed-out, household appliance consumption – in real time, with trend displays of historical data. Hourly electricity prices, if published by the provider.

- Security in the same app. Activate and deactivate the alarm system by PIN – via an Elausys alarm gateway or any KNX object – and check cameras, locks and presence.

- Scenes and automations. Scenarios with one fingertip; rules based on time, sunrise/sunset, temperature, presence or any device values, pausable by the user.

- Individual customisation. Designs, accent colours, background images, light or dark by schedule; renamed devices, selected icons, rearranged rooms, customisable text size.

- Universal KNX bridge. Assign standard KNX group addresses to any devices of any protocols – a Modbus meter, an MQTT sensor, a BACnet ventilation device, a Home Assistant entity – bidirectionally and seamlessly. The KNX installation recognises these as ordinary group objects.

- Logic on the server. Any logic can be created with function blocks, combining devices of any protocols. The rules are executed on the server, not in the app.

- Tools for the integrator. KNX bus history display, remote ETS programming via the server, role-based access.

Technical data

- Versions: HOME 2 GB / PRO 4 GB / MAX 8 GB RAM

- Processor: ARM Cortex-A72 Quad-Core 1.5 GHz

- Storage: 32 GB eMMC

- Protocols: KNX (via KNX/IP interface), Modbus TCP, MQTT, BACnet/IP, HTTP, TCP/UDP, Sonos

- Services: Home Assistant, Node-RED, Grafana, MQTT broker

- Universal KNX bridge: bidirectional mapping of KNX group addresses to any protocols
