EELECTRON 9025GL10W03 KNX Touch Sensor Cover GLASSPAD Line | 10-speed, Single, Custom | black

Manufacturer: EELECTRON

Article no.: 20087139

EAN: 8054144520292

Manufacturer item number: 9025GL10W03

Manufacturer type: 9025GL10W03

Weight: 0,142 kg

Available on request

pcs

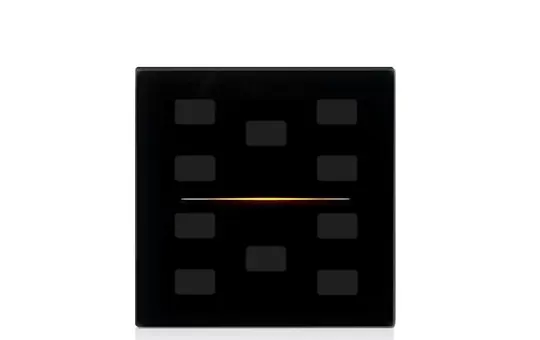

Cover made of black glass, 10 channels, available in 2 series: STANDARD or RGB; a CUSTOM version is available for each series.

The 9025 KNX® push-button series consists of capacitive push-buttons with 2 – 4 – 6 – 8 – 10 channels.
Each push-button can be configured to control On/Off commands, dimmers, roller shutters and blinds, to execute and learn scenes, object sequences, etc.

The device includes a 2-stage thermostat with an integrated PI controller for controlling heating and cooling devices, valves, 2- and 4-pipe fan coils, etc.

The device features a built-in temperature sensor and is equipped with a rear input that can be configured as digital or analogue; it is possible to connect an additional NTC sensor (item number eelectron TS01A01ACC or TS01B01ACC – not included) to the 2-pole rear connector to obtain a second temperature measurement.
The device contains an RGB LED strip on the front for displaying statuses or other values available on the KNX bus (function available in the RGB series).

The glasses in the CUSTOM version offer the possibility to have individually customisable and interchangeable symbols with backlighting, which can be linked to the configured function.

The 9025 KNX® series is suitable for installation in 2-module boxes and is compatible with the main standards (Italian, German, English, etc.).

Brand: EELECTRON
Class: Touch sensors
Colour: black
Manufacturer item number: 9025GL10W03
Manufacturer type: 9025GL10W03
