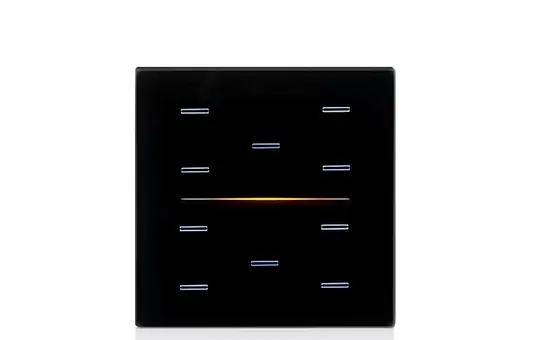

EELECTRON 9025GL10L03 KNX push sensor cover GLASSPAD Line | 10-speed, single | black

Manufacturer: EELECTRON

Article no.: 20087154

EAN: 8054144520278

Manufacturer item number: 9025GL10L03

Manufacturer type: 9025GL10L03

Weight: 0,142 kg

Available on request

pcs

Black glass cover, 10 channels, available in 2 series: STANDARD or RGB; a CUSTOM version is available for each series.

The 9025 KNX® push-button series consists of capacitive push-buttons with 2 – 4 – 6 – 8 – 10 channels.
Each push-button can be configured to control on/off commands, dimmers, roller shutters and blinds, execution and learning of scenes, object sequences, etc.

The device includes a 2-stage thermostat with integrated PI controller for controlling heating and cooling devices, valves, 2- and 4-pipe fan coils, etc.

The device features an integrated temperature sensor and is equipped with a rear input that can be configured as digital or analogue; it is possible to connect an additional NTC sensor (code eelectron TS01A01ACC or TS01B01ACC – not included) to the 2-pole rear connector to obtain a second temperature measurement.
The device has an RGB LED strip on the front to display status or other values available on the KNX bus (function available in the RGB series).

The glasses in the CUSTOM version offer the possibility to personalise and exchange symbols with backlighting, which can be assigned to the configured function.

The 9025 KNX® series is suitable for installation on a 2-module box and is compatible with the main standards (Italian, German, English, etc.).

Brand: EELECTRON
Class: Touch sensors
Colour: black
Manufacturer item number: 9025GL10L03
Manufacturer type: 9025GL10L03
