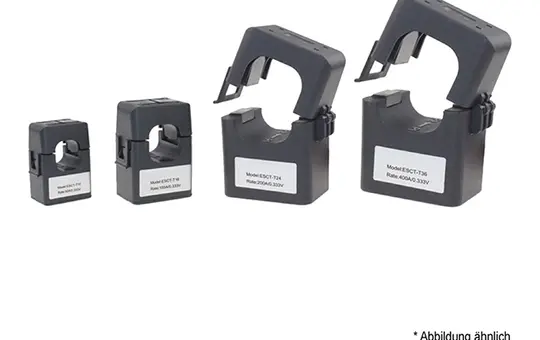

EASTRON 1992001 Folding Transformer 100A

EASTRON 1992001 Folding Transformer | 100A

Manufacturer: EASTRON
Article no.: 20003974
Manufacturer item number: 1992001
Manufacturer type: SCT-T16
Weight: 0,001 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Foldable Current Transformer 100~100/5A SCT-T16



100A current transformer for use with current transformer meters - easy installation WITHOUT circuit interruption - compact design according to the construction type - suitable for bidirectional measurements



Technical Data:


  • Primary winding (input): 100A

  • Secondary winding (output): 5A (AC)

  • Accuracy: ± 1% from 20% to 120% of input

  • Frequency range: 50-60 Hz

  • Phase angle: less than 2 degrees at 50% of rated current

  • Insulation voltage: 600V AC

  • Maximum primary voltage: 5000 V AC (insulated conductor)

  • Dielectric strength: 2.5KV / 1 mA / 1 min

  • Operating temperature: -15 to 60 degrees Celsius

  • Humidity: <85%

  • Housing material: PC / UL94-V0

  • Coil: PBT

  • Core: Permalloy

  • Internal structure: Epoxy




NOTE: You order the quantity according to your selection! The images serve for product presentation only! 1 m cable length.
Brand
EASTRON
Class
counter
Interfaces
S0 | Modbus RTU
Manufacturer item number
1992001
Manufacturer type
SCT-T16
Rated current in A
100
Type
Folding converter
Manufacturer information
EASTRON
EASTRON ELECTRONIC CO., LTD.
Dongjin Road
Nanhu, Jiaxing Zhejiang
CN

sales@eastrongroup.com
www.eastron.com.cn

Verantwortliche Person in der EU:
B+G E-Tech GmbH
Franz-Mehring-Straße 36
01979  Lauchhammer
DE

info@bg-etech.de
xn--stromzhler-v5a.eu/
