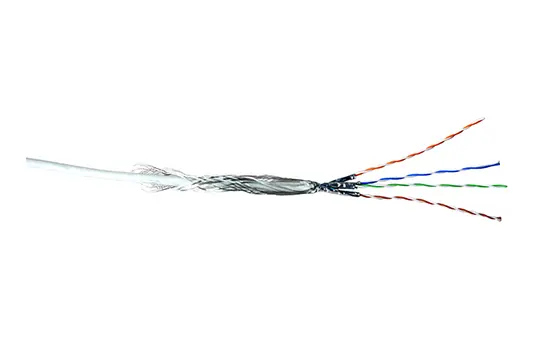

DRAKA 60060699-Dca Data Cable Cat. 7 (600 MHz) Ring 250 m | white | 8x2x22 AWG

DRAKA 60060699-Dca Data Cable Cat. 7 (600 MHz) | Ring 250 m | white | 8x2x22 AWG

Manufacturer: DRAKA
Article no.: 20003315
EAN: 8717511641685
Manufacturer item number: 60060699-Dca
Manufacturer type: 60060699-Dca
Weight: 0,001 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
meter
UChome SS26 Cat.7 white dup 8P S/FTP AWG26 60060699-Dca Tr250 Conductor surface bare, conductor diameter 0.42 mm, conductor class Cl.1 = solid, number of cores 16, pair stranding element, specification of core insulation polyethylene (PE), core identification colour, shield over stranding element foil, shield over stranding braid, sheath material other, sheath colour white, fire behaviour class according to EN 13501-6 Dca, smoke development class according to EN 13501-6 s1, dripping behaviour class according to EN 13501-6 d1, acid development class according to EN 13501-6 a1, halogen-free according to EN 60754-1/2, flame retardant according to IEC/EN 60332-1-2, low smoke according to EN 61034-2, outer diameter approx. 11.8 mm, permissible cable outer temperature during installation/handling 10 ... 40°C, permissible cable outer temperature after installation without vibration -20 ... 60°C, category 7, NVP value 76%

Brand
DRAKA
Cable type
S/FTP
Cat.
7
Class
Data lines
Coat color
white
Conductor diameter in mm
0.42
Duplex
Yes
Halogen free
Yes
Manufacturer item number
60060699-Dca
Manufacturer type
60060699-Dca
Number of wires
16
Outer diameter in mm
11.8
Manufacturer information
DRAKA
Draka Comteq Germany GmbH & Co.KG
Piccoloministr. 2
51063 Köln
DE

steffen.hofmann@prysmiangroup.com
communications.draka.com
