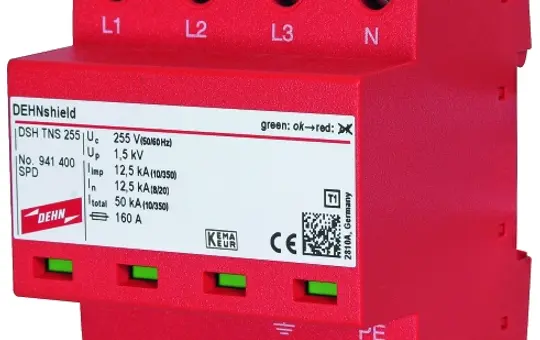

DEHN 941400 combination arrester type 1+2 | 4-pin, TN-S

Manufacturer: DEHN

Article no.: 20001967

EAN: 4013364133563

Manufacturer item number: 941400

Manufacturer type: DSH TNS 255

Weight: 0,525 kg

In stock

Delivery: 2-3 business days

264,75 €

incl. VAT + shipping

pcs

Combined arrester TN-S systems DSH TNS 255 network type TN-S, number of poles 4, lightning impulse current (10/350 µs) 50kA, highest continuous voltage AC 255V, nominal voltage AC 230V, protection level 1.5kV, protection level L-PE 1.5kV, Protection level N-PE 1.5kV, follow current extinguishing capability 25kA, Spec

Brand: DEHN
Class: Overvoltage protection
Configuration: 4-pole
Dissipation capacity in kA: 37.50
Division units: 4
Manufacturer item number: 941400
Manufacturer type: DSH TNS 255
Mounting type: Series installation
old Voltus number: 1349283
Type: 1 | 2

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

DEHN
DEHN SE
Hans-Dehn-Str.1
92318 Neumarkt i.d.OPf.
DE

info@dehn.de
www.dehn.de/de

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: DEHN
Class: Overvoltage protection
Configuration: 4-pole
Dissipation capacity in kA: 37.50
Division units: 4
Manufacturer item number: 941400
Manufacturer type: DSH TNS 255
Mounting type: Series installation
old Voltus number: 1349283
Type: 1 | 2
