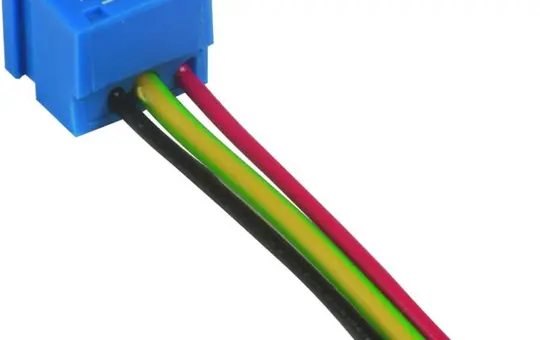

DEHN 925001 Surge Arrester for KNX/EIB Bus BUStector | Type 2

Manufacturer: DEHN

Article no.: 20040921

EAN: 4013364047365

Manufacturer item number: 925001

Manufacturer type: BT 24

Weight: 0,013 kg

In stock

Delivery: 2-3 business days

pcs

Surge protection 5WG1190-8AD01 Rated voltage AC 24 ... 24V, Rated voltage DC 24 ... 24V, Maximum continuous voltage AC 24V, Maximum continuous voltage DC 45V, Rated discharge current (8/20) 5kA, Lightning impulse current (10/350 µs) 1kA, Rated load current 6A, Protection level conductor/conductor 1200V, Protection level conductor/earth 650V, Mounting type other, Connection 1 other, Signalling on device none,

Brand: DEHN
Class: Overvoltage protection
Dissipation capacity in kA: 5
Manufacturer item number: 925001
Manufacturer type: BT 24
Remote signaling: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

DEHN
DEHN SE
Hans-Dehn-Str.1
92318 Neumarkt i.d.OPf.
DE

info@dehn.de
www.dehn.de/de

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: DEHN
Class: Overvoltage protection
Dissipation capacity in kA: 5
Manufacturer item number: 925001
Manufacturer type: BT 24
Remote signaling: No

Documents
