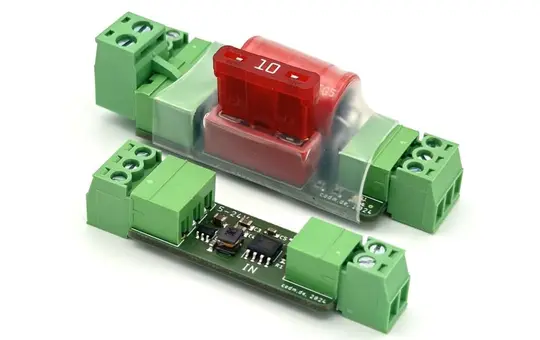

COD.M 90067 WLED Range Extender v0.4 | IN+OUT

Manufacturer: COD.M

Article no.: 20072824

Manufacturer item number: 90067

Manufacturer type: 90067

Weight: 0,006 kg

Available on request

pcs

The cod.m WLED Range Extender is designed to increase the usually short distance between the WLED controller (WLAN/Wi-Fi) and the digital strip. The 800kHz signal of typical pixel types with only one control line, e.g. WS2811, WS2812, WS2815, SK6812, etc., is converted into a differential signal to extend the range.
The signal is fed into the IN module (Art. No. 90065), where it is converted and can be transmitted up to 500 m via a two-wire twisted pair. The OUT module (Art. No. 90066) is then connected to the digital strip, and the differential signal from the IN module is fed in.

Brand: COD.M
Class: Controls
Manufacturer item number: 90067
Manufacturer type: 90067

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

COD.M
cod.m GmbH
Allendorfer Straße 56
35708 Haiger
DE

info@codm.de
www.codm.de

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: COD.M
Class: Controls
Manufacturer item number: 90067
Manufacturer type: 90067

Documents
