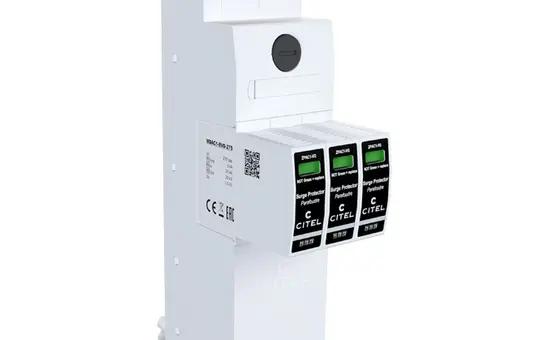

CITEL 64079 Combination Arrester Type 1+2+3 Busbar 4-pole, TT TN-S, Iimp=8 kA, with contact

CITEL 64079 Combination Arrester Type 1+2+3 Busbar | 4-pole, TT TN-S, Iimp=8 kA, with contact

Manufacturer: CITEL
Article no.: 20004020
EAN: 3309450042934
Manufacturer item number: 64079
Manufacturer type: ZPAC1-8VG-PRO-U
Weight: 0,677 kg
Available on request
Electrical appliance take-back
pcs
The described device is a lightning current and surge arrester for TT and TN-S systems according to EN/IEC 61643-11. It is designed for main power supply systems and busbars with a spacing of 40 mm. The protection modules feature a fault indicator and can be replaced individually. The device supports a maximum continuous voltage of 275 V AC and a fuse rating of up to 160 A. It responds in less than 20 nanoseconds and uses VG technology, which is operational and leakage current-free.

With a width of 53.8 mm and a space requirement of 3 modules (3 TE), the device is designed for three-phase operation and offers a 10-year warranty. It has a discharge capacity of 8 kA (10/350 µs) and is suitable for buildings without external lightning protection. Additionally, it provides a protected voltage tap L1 for the power supply of APZ field and auxiliary room.
Brand
CITEL
Class
Overvoltage protection
Configuration
4-pole
Dissipation capacity in kA
8
Manufacturer item number
64079
Manufacturer type
ZPAC1-8VG-PRO-U
Mounting type
Series installation
Remote signaling
No
Type
1 | 2 | 3

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
CITEL
Citel Electronics GmbH
Feldstraße 9a
44867 Bochum
DE

vertrieb@citel.de
citel.de/
