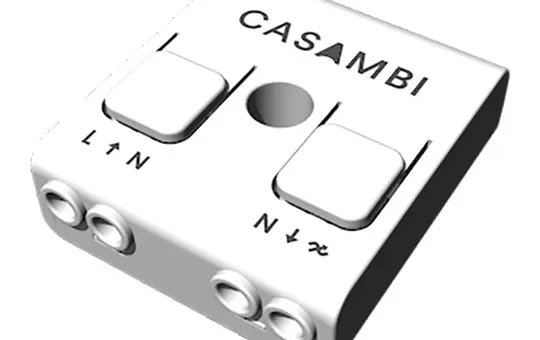

CASAMBI CBU-TED-LR Bluetooth dimmer actuator | standard

Manufacturer: CASAMBI

Article no.: 20037073

Manufacturer item number: CBU-TED-LR

Manufacturer type: CBU-TED-LR

Weight: 0,015 kg

In stock

Delivery: 2-3 business days

pcs

CBU-TED is a Bluetooth-controlled, Casambi-enabled trailing edge dimmer for incandescent lamps, dimmable LEDs, and LED drivers. It can be installed behind wall switches or in luminaires, with a maximum permissible ambient temperature. Wireless control via the Casambi app for iOS/Android or wall switches. Casambi app available for free. Can operate in an intelligent mesh network with up to 127 units. Technical data: trailing edge phase control, input: 85-240 VAC 50-60 Hz and 120 VAC 60 Hz, output power for various lamp types. Dimensions: 40.4 x 36.3 x 14.0 mm, protection rating: IP20.

Active power measurement: No
BAB-Tec: No
Blinds: No
Bluetooth: Yes
Brand: CASAMBI
Casambi: Yes
Class: Dimming actuators
DALI: No
Day/night function: No
Dimming: Yes
Dimming method: Phase lead/edge
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: No
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Local/manual operation: No
Manufacturer item number: CBU-TED-LR
Manufacturer type: CBU-TED-LR
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of outputs: 1
Output power in W: 150
Parallel operation of channels possible: No
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Switch: No
Theben LUXORliving: No
Thread: No
Type of transmission: radio
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

CASAMBI
Casambi Technologies Oy
Bertel Jungin Aukio 1 C
2600 Espoo
FI

support@casambi.com
casambi.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Active power measurement: No
BAB-Tec: No
Blinds: No
Bluetooth: Yes
Brand: CASAMBI
Casambi: Yes
Class: Dimming actuators
DALI: No
Day/night function: No
Dimming: Yes
Dimming method: Phase lead/edge
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: No
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Local/manual operation: No
Manufacturer item number: CBU-TED-LR
Manufacturer type: CBU-TED-LR
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of outputs: 1
Output power in W: 150
Parallel operation of channels possible: No
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Switch: No
Theben LUXORliving: No
Thread: No
Type of transmission: radio
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
