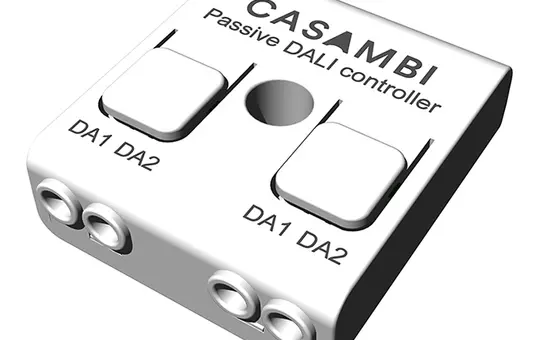

CASAMBI CBU-DCS Bluetooth DALI Interface Passive standard

CASAMBI CBU-DCS Bluetooth DALI Interface Passive | standard

Manufacturer: CASAMBI
Article no.: 20037076
Manufacturer item number: CBU-DCS
Manufacturer type: CBU-DCS
Weight: 0,015 kg
Available on request
Electrical appliance take-back
pcs
CBU-DCS is a Bluetooth-controllable, Casambi-enabled DALI controller. CBU-DCS has no own power supply. Instead, it is powered directly via a DALI bus.

Product description

CBU-DCS can be used with a DALI sensor for presence detection or daylight harvesting or for controlling DALI drivers with integrated DALI bus power supply. In conjunction with drivers, various options are supported, including device type 6, device type 8, adjustable white control, and RGB control.

CBU-DCS features two connector sets. These connectors are internally connected in parallel. This allows the DALI bus to be routed through the product for easy installation.

Technical data:

Input: DALI bus
Voltage range: 9.5 - 22.5 VDC
Max. no-load input current: 5 mA
Peak input current: 30 mA
Max. DALI bus current: 250 mA
DALI loads: 3
Dimensions: 40.4 x 36.3 x 14.0 mm
Weight: 15 g
Protection: IP20 (indoor use only)
BAB-Tec
No
Bluetooth
Yes
Brand
CASAMBI
Broadcast
No
Casambi
Yes
Class
DALI gateway
DALI
No
DALI-2
No
DT6
Yes
DT8
Yes
Effects control
No
Emergency lighting function
No
ENOcean
No
free@home
No
Gira One
No
Group control
No
Hager KNXeasy
No
HCL
No
HSV
No
Individual control
Yes
Integrated controller
No
Integrated DALI power supply
No
Integrated logic
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Local/manual operation
No
Manufacturer item number
CBU-DCS
Manufacturer type
CBU-DCS
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of channels
1
RGB
Yes
RGBW
No
Scenes
No
Shelly
No
Siemens LOGO!
No
suitable for DALI-2 sensors
No
Target protocol
DALI
Theben LUXORliving
No
Thread
No
TW
Yes
Type of transmission
radio
Web browser
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
