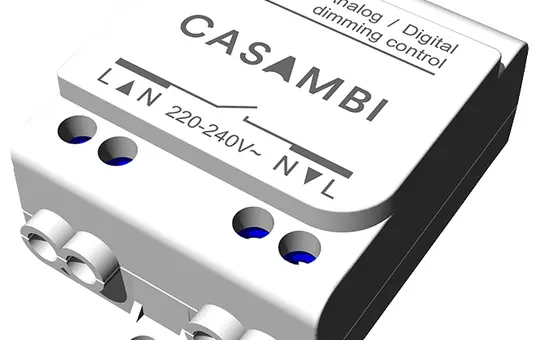

CASAMBI CBU-ASD-LR Bluetooth-DALI Interface | standard

Manufacturer: CASAMBI

Article no.: 20037075

Manufacturer item number: CBU-ASD-LR

Manufacturer type: CBU-ASD-LR

Weight: 0,048 kg

In stock

Delivery: 2-3 business days

pcs

The CBU-ASD is a Bluetooth-controlled control unit for LED drivers with 0-10V, 1-10V, or DALI interface. It offers various operating modes such as DALI DT8 TW, RGB, RGBW, and DALI Broadcast. Configuration as standalone DALI allows direct connection to LED drivers without external power supply. Supported are iOS 10 and above, Android 4.4 and above. Technical data: Voltage range 220-240 VAC, max. current consumption 0.6 A, 0-10V output range 0-10 VDC, frequency range 50 Hz, operating temperature -20 to +50°C, protection class IP20.

BAB-Tec: No
Bluetooth: Yes
Brand: CASAMBI
Broadcast: Yes
Casambi: Yes
Class: DALI gateway
DALI: No
DALI-2: No
DT6: Yes
DT8: Yes
Effects control: No
Emergency lighting function: No
ENOcean: No
free@home: No
Gira One: No
Group control: No
Hager KNXeasy: No
HCL: No
HSV: No
Individual control: Yes
Integrated controller: No
Integrated DALI power supply: No
Integrated logic: No
JUNG HOME: No
KNX: No
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Local/manual operation: No
Manufacturer item number: CBU-ASD-LR
Manufacturer type: CBU-ASD-LR
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of channels: 1
RGB: Yes
RGBW: Yes
Scenes: No
Shelly: No
Siemens LOGO!: No
suitable for DALI-2 sensors: No
Target protocol: DALI
Theben LUXORliving: No
Thread: No
TW: Yes
Type of transmission: radio
Web browser: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Umprogrammieren des CBU-ASD Modus

Manufacturer information

CASAMBI
Casambi Technologies Oy
Bertel Jungin Aukio 1 C
2600 Espoo
FI

support@casambi.com
casambi.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

BAB-Tec: No
Bluetooth: Yes
Brand: CASAMBI
Broadcast: Yes
Casambi: Yes
Class: DALI gateway
DALI: No
DALI-2: No
DT6: Yes
DT8: Yes
Effects control: No
Emergency lighting function: No
ENOcean: No
free@home: No
Gira One: No
Group control: No
Hager KNXeasy: No
HCL: No
HSV: No
Individual control: Yes
Integrated controller: No
Integrated DALI power supply: No
Integrated logic: No
JUNG HOME: No
KNX: No
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Local/manual operation: No
Manufacturer item number: CBU-ASD-LR
Manufacturer type: CBU-ASD-LR
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of channels: 1
RGB: Yes
RGBW: Yes
Scenes: No
Shelly: No
Siemens LOGO!: No
suitable for DALI-2 sensors: No
Target protocol: DALI
Theben LUXORliving: No
Thread: No
TW: Yes
Type of transmission: radio
Web browser: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

Documents
