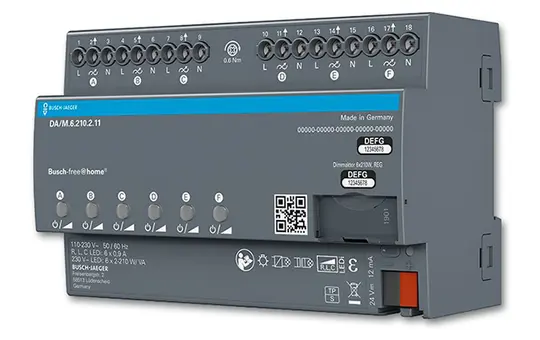

BUSCH-JAEGER DA/M.6.210.2.11 f@h dimming actuator 6-fold, 210 W

BUSCH-JAEGER DA/M.6.210.2.11 f@h dimming actuator | 6-fold, 210 W

Manufacturer: BUSCH-JAEGER
Article no.: 20019047
EAN: 4011395251805
Manufacturer item number: 2CKA006220A0730
Manufacturer type: DA/M.6.210.2.11
Weight: 0,4615 kg
In stock
Delivery: 2-3 business days
426,23 €
incl. VAT + shipping
pcs
Multi-channel universal dimming actuator optimized for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps, and dimmable halogen energy-saving lamps. Automatic load detection (can be deactivated). Separate N connection per channel. Parallel connection of the outputs is possible to increase the output power. Outputs can be connected in parallel as required. Minimum load: 2 W. Manual operation of the device is possible even without bus voltage or in an unprogrammed state. The device can also be programmed without a 230 V supply voltage. With integrated bus coupler. Rated power at 230 V AC mains voltage: 230 V AC incandescent and halogen lamps: 6 x 210 W/VA to 1 x 800 W/VA. Dimmable 230 V~ LEDi: 6 x 210 W/VA to 1 x 800 W/VA in trailing edge phase control, 6 x 80 W/VA to 1 x 240 W/VA in leading edge phase control.
Brand
BUSCH-JAEGER
Color control
-
Connection type CC
-
DALI Device Type
-
Different bus system
-
Different phases can be connected
Yes
Dimming
Yes
Dimming method
Phase lead/edge
Division units
8
free@home
Yes
Local/manual operation
Yes
Manufacturer item number
2CKA006220A0730
Manufacturer type
DA/M.6.210.2.11
Mounting type
Series installation
Number of outputs
6
old Voltus number
1691644
Output power in W
210.00
Parallel operation of channels possible
Yes
Rated voltage outputs
230V AC
Type of transmission
Cable
Manufacturer information
BUSCH-JAEGER
Busch - Jaeger Elektro GmbH
Freisenbergstr. 2
58513 Lüdenscheid
DE

info.bje@de.abb.com
www.busch-jaeger.de
