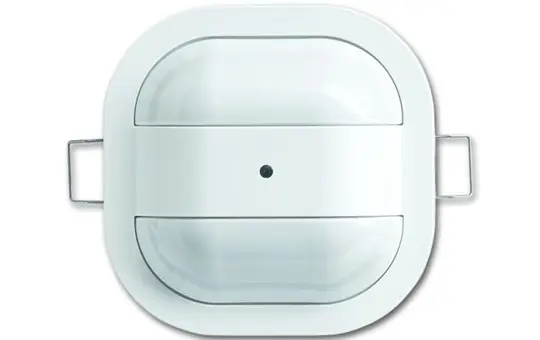

BUSCH-JAEGER 6819/31-24 Presence Detector | 12 m Universal BT, relay, with Bluetooth | studio white matt

Manufacturer: BUSCH-JAEGER

Article no.: 20018478

EAN: 4011395217627

Manufacturer item number: 2CKA006800A2740

Manufacturer type: 6819/31-24

Weight: 0,272 kg

Available on request

pcs

Master presence detector with mixed light measurement.

For brightness- and motion-dependent switching of lighting. With Bluetooth interface for parameterisation and operation. Adjustment of all settings via smartphone or tablet. Light control via smartphone or tablet app. With high-load relay for LED operation. Detection range (at 3 m mounting height): circular: seated persons: up to Ø 10 m, walking persons: up to Ø 12 m. Extension of the detection range through master/slave combination. Installation height 23 mm. For semi-automatic, comfort, and fully automatic operation. Additional on/off option via push-button input. With permanent light / permanent off function (8 hrs), activatable via intelligent auxiliary input. With selectable presence simulation when absent. With integrated storage of the switch-on duration (Energy Monitor). With brightness-independent test mode for evaluation of the detection range.

Acoustic sensor: No
Air pressure sensor: No
Area: Inside
Brand: BUSCH-JAEGER
Brightness sensor: Yes
Class: Presence detector
CO2 sensor: No
Colour: white
Crawl protection: Yes
DALI-2: No
Detection area: circular
Detection type/sensor type: Passive infrared
fits in 55 switch range: No
Frontal range in m: 6
Humidity sensor: No
Installation height in m: 3
Integrated constant light control: No
LED night light: No
Manufacturer item number: 2CKA006800A2740
Manufacturer type: 6819/31-24
Manufacturer's colour: studio white
Material: Plastic
Mounting type: Surface-mounted
Number of areas: 1
Protection class (IP): IP40
Reach laterally in m: 6
Remote controllable: Yes
suitable for ceiling mounting: Yes
suitable for installation in switch ranges: No
suitable for wall mounting: No
Surface: matt
Temperature sensor: No
VOC sensor: No
