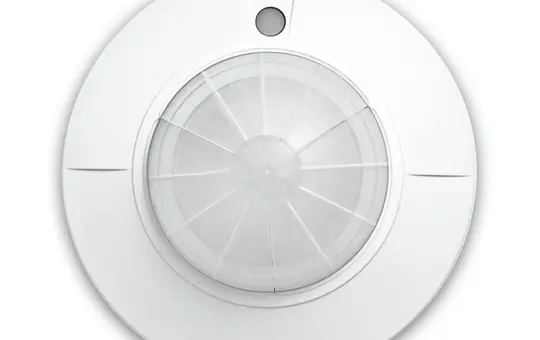

BUSCH-JAEGER 6818U ceiling presence detector BasicLINE corridor | alpine white

BUSCH-JAEGER 6818U ceiling presence detector BasicLINE | corridor | alpine white

Manufacturer: BUSCH-JAEGER
Article no.: 20013434
EAN: 4011395133347
Manufacturer item number: 2CKA006800A2510
Manufacturer type: 6818 U
Weight: 0,236 kg
In stock
Delivery: 2-3 business days
120,69 €
incl. VAT + shipping
pcs
For brightness- and motion-dependent switching of lighting. Circular detection area (at a mounting height of 2.5 m), up to 24 m in diameter. Additional on/off switching option via push button input. The detection area can be adjusted using the included masking elements. Brightness-independent test mode for evaluating the detection area is available. Detection indicator during test mode is provided. Automatic passage detection is provided. Automatic sensitivity adjustment is provided. Can be mounted in combination with flush-mounted and device boxes. Ceiling-mounted installation is provided using the included dust protection box. Adjustment elements are accessible from the front. Monitoring density: 215 sectors with 860 switching segments. Switch-off delay: approx. 10 s - 30 min. or adjustable with a short-term pulse. Remote control via the 6843 IR service handheld transmitter. Outdoor use is possible when combined with the 6888 surface-mounted housing. The maximum detection area depend
Brand
BUSCH-JAEGER
Brightness sensor
Yes
Class
Presence detector
Color
white
Crawl protection
Yes
Detection area
circular
Detection type/sensor type
Passive infrared
Frontal range in m
12.00
Installation height in m
2.50
Manufacturer item number
2CKA006800A2510
Manufacturer type
6818 U
Manufacturer's color
alpinweiß
Mounting type
flush-mounted
Number of areas
1
old Voltus number
1035287
Reach laterally in m
12.00
Remote controllable
Yes
suitable for ceiling mounting
Yes
Surface
matt
Manufacturer information
BUSCH-JAEGER
Busch - Jaeger Elektro GmbH
Freisenbergstr. 2
58513 Lüdenscheid
DE

info.bje@de.abb.com
www.busch-jaeger.de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
