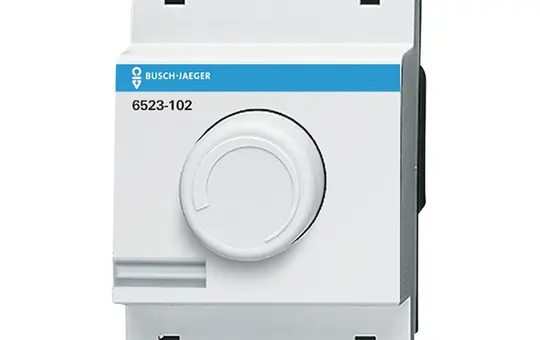

BUSCH-JAEGER 6523-102 rotary dimmer REG RLC, LED, 2-100W

BUSCH-JAEGER 6523-102 rotary dimmer REG | RLC, LED, 2-100W

Manufacturer: BUSCH-JAEGER
Article no.: 20017696
EAN: 4011395212738
Manufacturer item number: 2CKA006512A0339
Manufacturer type: 6523-102
Weight: 0,085 kg
In stock
Delivery: 2-3 business days
125,07 €
incl. VAT + shipping
pcs
With rotary operation, push-button sequence switch, and soft-locking mechanism. Optimized for dimming retrofit LED lamps (LEDi). For dimmable retrofit LED lamps (LEDi). For dimmable retrofit LED lamps (LEDi) with conventional or electronic transformers. For incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable halogen energy-saving lamps. Mixed load operation with LEDi and conventional lamps is possible. Switchable between leading-edge and trailing-edge phase control using a selector switch. Low-noise thanks to the use of MOSFET transistors. Short-circuit and overload-proof (electronic fuse). With adjustable minimum brightness. Rated voltage: 230 V~, + 10% / - 10%. Rated frequency: 50 Hz/60 Hz. Rated power: 2 - 100 W/VA (retrofit LED loads). Rated power: 10–250 W/VA (non-LED loads). For conventional transformers, allow for approximately 20% transformer losses.
Brand
BUSCH-JAEGER
Class
dimmer
Dimming method
Phase lead/edge
Manufacturer item number
2CKA006512A0339
Manufacturer type
6523-102
old Voltus number
1640051
Power in W
2.00
Series
Allwetter 44 | alpha exclusive | alpha nea | art linear | Axcent | Carat | dynasty | Future Linear | Solo | Balance SI | Decento | Duro 2000 | Impuls | pur edelstahl | Reflex SI
Type of operation
Rotary/push button

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung
Manufacturer information
BUSCH-JAEGER
Busch - Jaeger Elektro GmbH
Freisenbergstr. 2
58513 Lüdenscheid
DE

info.bje@de.abb.com
www.busch-jaeger.de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
