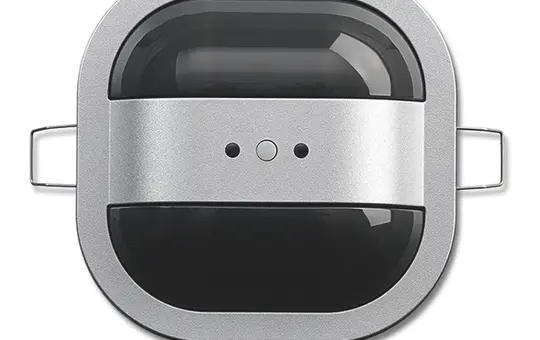

BUSCH-JAEGER 6131/31-183 KNX presence detector | 12 m, standard premium | aluminum silver

Manufacturer: BUSCH-JAEGER

Article no.: 20017494

EAN: 4011395185827

Manufacturer item number: 2CKA006132A0336

Manufacturer type: 6131/31-183

Weight: 0,096 kg

In stock

Delivery: 2-3 business days

149,55 €

incl. VAT + shipping

pcs

Detection area (at 2.5 m, 3 m and 4 m installation height): circular. Seated persons Ø: max. 8 m, max. 10 m and max. 14 m. Walking persons Ø: max. 10 m, max. 12 m and max. 16 m. Installation height 23 mm. With 4 channels. For dimming/regulating the brightness to a defined value within a designated detection area. HVAC function for controlling heating and/or cooling systems as well as ventilation systems within the designated detection area. Detector application with 2-stage shutdown function. Detector application with integrated monitoring function. Constant light controller with up to 2 independent channels. Constant light controller with max. 2 outputs for brightness-dependent dimming/regulation of two light strips in the room. Integrated object room temperature controller. 10 freely programmable IR channels (blue and/or white) including 5 logic channels (logic gate, gate, delay, and staircase light). Evaluation via internal brightness sensor.

Brand: BUSCH-JAEGER
Brightness sensor: Yes
Class: Presence detector
Color: silver
Crawl protection: Yes
Detection angle in °: 360
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 7.00
Installation height in m: 2.50
Installation location: Ceiling
Integrated constant light control: Yes
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 2CKA006132A0336
Manufacturer type: 6131/31-183
Mounting type: surface-mounted | flush-mounted
Number of areas: 4
old Voltus number: 1612801
Reach laterally in m: 8.00
suitable for ceiling mounting: Yes
Surface: matt
Temperature sensor: Yes
Type of transmission: Cable
