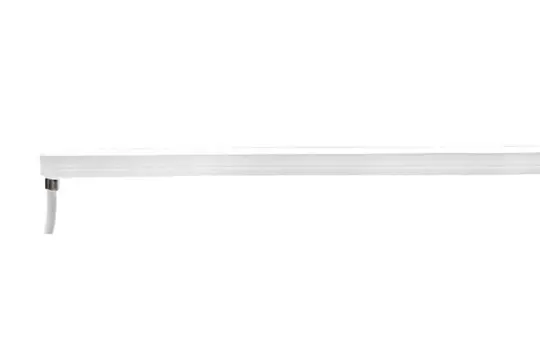

BRUMBERG 19582004 LED flexible circuit board Q-FLEX Protection Horizon 5 W/m, 4000K | 27 m

BRUMBERG 19582004 LED flexible circuit board Q-FLEX Protection Horizon | 5 W/m, 4000K | 27 m

Manufacturer: BRUMBERG
Article no.: 20074741
EAN: 4251433971412
Manufacturer item number: 19582004
Manufacturer type: 19582004
Weight: 2,95 kg
Available on request
Electrical appliance take-back
Energy label E
pcs
LED flexible circuit board, CRI >90, 5 W / m, IP67, LED white light, 4,000K, CRI > 90 LED flexible circuit board with length: 27000.0 mm Lamp power per metre: 5.0 W/m, luminous flux per metre: 150.0 lm/m, room-side protection rating: IP67, protection class: III, voltage: 24V DC, beam angle: 120.0 °, 120 LEDs per metre, chip pitch (short pitch): 8.33 mm. For individual applications, the LED flexible circuit board can be shortened every 50 mm. When shortening the LED flexible circuit board, the IP protection must be restored on site. The maximum system length of 27,000 mm must not be exceeded with a single power feed.
Beam angle in °
120
Brand
BRUMBERG
Class
LED strips
Color Rendering Index (CRI)
90-100
dim to warm
No
Energy efficiency class
E
Length in mm
27000
Length of a segment in mm
50
Luminous flux in lm/m
150
Manufacturer item number
19582004
Manufacturer type
19582004
Mounting type
Construction
Power in W/m
5
Protection class (IP)
IP67
