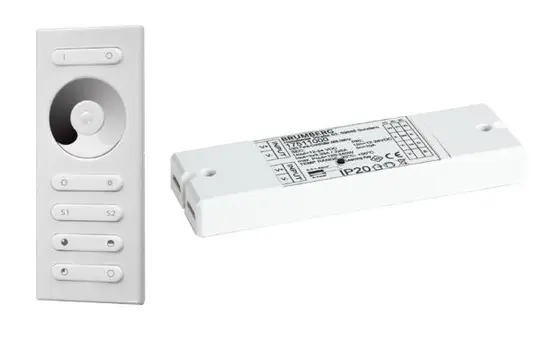

BRUMBERG 17528000 Radio Control White light | white

BRUMBERG 17528000 Radio Control | White light | white

Manufacturer: BRUMBERG
Article no.: 20074671
EAN: 4251433922568
Manufacturer item number: 17528000
Manufacturer type: 17528000
Weight: 0,218 kg
Available on request
Electrical appliance take-back
pcs
White light radio control, white. White light radio control for operating single-colour LED modules in the white light range or for controlling the dim2warm flexible circuit boards 15312003 / 15362003.

Controller:
Voltage: 12-24 V DC, Current: max. 10 A (2 x 5 A or 3 x 3.33 A), Power: max. 120 W / 240 W (12 V DC / 24 V DC), Control: negative (common anode), Control signal: PWM, Radio frequency: 869.5 MHz, Range (line of sight): up to 20 m, Dimensions: L 178 x W 46 x H 18 mm, Material: plastic, Delivery: including strain relief, Controllers per remote control: max. 4 (with optimal radio connection)

Remote control:
Voltage (battery): 4.5 V DC - 3 x AAA (not included), Radio frequency: 869.5 MHz, Transmission power (Ps) < 0 dBm, Range (line of sight): up to 20 m, Dimensions: L 120 x W 48 x H 18 mm, Material: plastic

Functions:
  • On / Off
  • Dimming via touch wheel
  • Memory buttons S1 / S2
  • Selection buttons 25 % / 50 % / 75 % / 100 % brightness

Protection rating on room side: according to DIN EN 60529: IP20,
Brand
BRUMBERG
Class
lighting power supplies
Manufacturer item number
17528000
Manufacturer type
17528000
