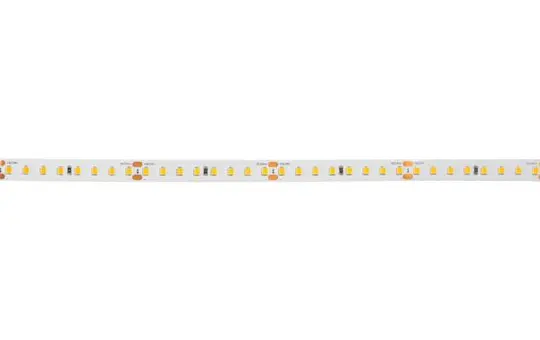

LED flexible circuit board, 5 m, CRI > 90, 14.4 W / m, IP00, LED white light, 4,000K, CRI > 90

LED flexible circuit board with length: 5000.0 mm
Lamp power per metre: 14.4 W/m
Luminous flux per metre: 2277.0 lm/m
Protection rating on room side: IP00
Protection class: III
Voltage: 24V DC
Beam angle: 120.0 °
128 LEDs per metre
Chip spacing (Short Pitch): 7.81 mm

For individual use, the LED flexible circuit board can be cut every 62.5 mm. The maximum system length of 5,000 mm must not be exceeded with one power feed.
Beam angle in °
120
Brand
BRUMBERG
Class
LED strips
Color Rendering Index (CRI)
90-100
dim to warm
No
Energy efficiency class
C
Length in mm
5000
Length of a segment in mm
62.5
Luminous flux in lm/m
2277
Manufacturer item number
15503004
Manufacturer type
15503004
Power in W/m
14.4
Protection class (IP)
IP00

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
BRUMBERG
BRUMBERG LEUCHTEN GMBH & Co. KG
Hellefelder Str. 63
59846 Sundern-Hellefeld
DE

info@brumberg.com
www.brumberg.com/de/
