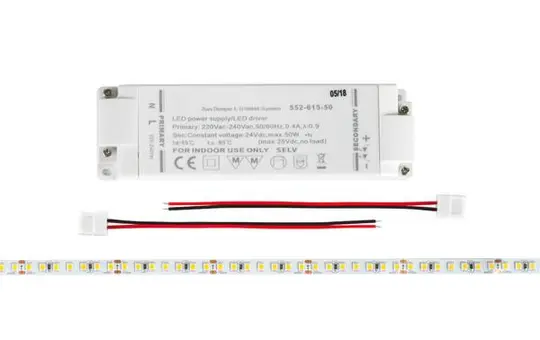

BRUMBERG 15292027 LED flexible circuit board set Q-FLEX ONE 9.6 W/m, 940 lm/m, 2700K | 5 m

BRUMBERG 15292027 LED flexible circuit board set Q-FLEX ONE | 9.6 W/m, 940 lm/m, 2700K | 5 m

Manufacturer: BRUMBERG
Article no.: 20074505
EAN: 4251433951391
Manufacturer item number: 15292027
Manufacturer type: 15292027
Weight: 0,386 kg
Available on request
Electrical appliance take-back
Energy label F
pcs
LED flexible circuit board set, 9.6 W/m, 5 m, IP00, 2700K, CRI > 80

LED flexible circuit board with a length of 5000.0 mm
Power per metre: 9.6 W/m, luminous flux per metre: 940.0 lm/m, room-side protection rating: IP00, protection class: II, voltage: 24V DC AC, beam angle: 120.0 °, 140 LEDs per metre, chip spacing (short pitch): 8.3 mm.

For individual applications, the LED flexible circuit board can be cut every 50 mm. The maximum system length of 5000 mm must not be exceeded with a single power feed.
Beam angle in °
120
Brand
BRUMBERG
Class
LED strips
Color Rendering Index (CRI)
80 - 89
dim to warm
No
Energy efficiency class
F
Length in mm
5000
Length of a segment in mm
50
Luminous flux in lm/m
940
Manufacturer item number
15292027
Manufacturer type
15292027
Power in W/m
9.6
Protection class (IP)
IP00
