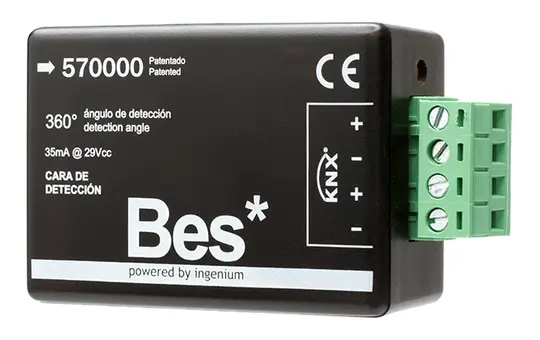

BESKNX SR570000 KNX HF motion detector | standard

Manufacturer: BESKNX

Article no.: 20037071

EAN: 8436596834118

Manufacturer item number: SR570000

Manufacturer type: SRKNX

Weight: 0,069 kg

In stock

Delivery: 2-3 business days

114,44 €

incl. VAT + shipping

pcs

The BESKNX SRKNX SR570000 is a concealed 360-degree high-frequency motion detector for ceiling installations. It is also suitable for installation in brick, wood, or plasterboard walls. With its broad and simple parameterization, it is ideal for lighting control, person detection, and burglary prevention. The detection range extends to 6x3m under warranty and a maximum of 12x6m. Power is supplied either via an auxiliary power source of 12-30V DC or via the KNX bus. The detector is IP20-rated and operates with an extra-low safety voltage of 24V DC. It can be mounted on ceilings or walls and has a compact size of 25 x 45 x 65mm and a weight of 115g.

Brand: BESKNX
Class: Motion detector
Color: black
Detection area: circular
Detection type/sensor type: High frequency
Different bus system: -
Installation height in m: 2.50
Installation location: Ceiling
KNX: Yes
KNX-TP: Yes
Manufacturer item number: SR570000
Manufacturer type: SRKNX
Mounting type: Cavity wall
old Voltus number: 1562846
Protection class (IP): -
suitable for ceiling mounting: Yes
Surface: -
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

BESKNX
BES KNX
Parque Tecno. d. Asturias, Parc. 50
33428 Llanera – Asturia
ES

export@besknx.com
besknx.com/website/en/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
