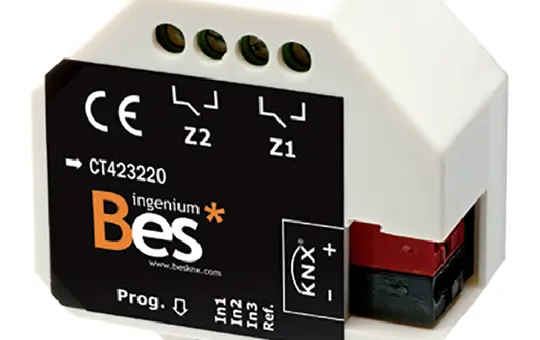

BESKNX CT423220 KNX universal actuator UP | 2-fold, 3 inputs

Manufacturer: BESKNX

Article no.: 20003261

EAN: 8436596833074

Manufacturer item number: CT423220

Manufacturer type: 3E2S-K

Weight: 0,071 kg

Available on request

117,35 €

incl. VAT + shipping

pcs

KNX universal actuator with 3 digital inputs and 2 digital outputs. The outputs operate simultaneously or independently in different modes (binary outputs, blinds, etc.). The device has 3 low-voltage digital inputs for connecting conventional push buttons or switches. Arithmetic logic unit (ALU). Parameters: Programming via ETS parameter application. Technical specifications: Power supply: 29 V DC from the KNX bus. Consumption: 9 mA from the KNX bus. Switching capacity: 16 A at 230 V AC output. Dimensions (W x H x D): 50 x 35 x 25 mm. For further technical specifications, please refer to the manufacturer's data sheet in the documentation.

Binary inputs integrated: Yes
Blinds: Yes
Brand: BESKNX
Class: Universal actuators
Different bus system: -
Different phases can be connected: Yes
Division units: -
KNX: Yes
Manufacturer item number: CT423220
Manufacturer type: 3E2S-K
Mounting type: flush-mounted
Number of binary inputs: 3
Number of blind outputs: 1
Number of outputs: 2
old Voltus number: 1692066
Rated voltage outputs: 230V AC
Switch: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

BESKNX
BES KNX
Parque Tecno. d. Asturias, Parc. 50
33428 Llanera – Asturia
ES

export@besknx.com
besknx.com/website/en/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Binary inputs integrated: Yes
Blinds: Yes
Brand: BESKNX
Class: Universal actuators
Different bus system: -
Different phases can be connected: Yes
Division units: -
KNX: Yes
Manufacturer item number: CT423220
Manufacturer type: 3E2S-K
Mounting type: flush-mounted
Number of binary inputs: 3
Number of blind outputs: 1
Number of outputs: 2
old Voltus number: 1692066
Rated voltage outputs: 230V AC
Switch: Yes
Type of transmission: Cable
