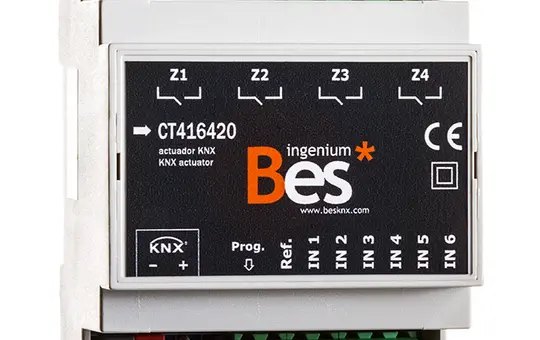

BESKNX CT416420 KNX universal actuator 16 A | 4-fold, 6 inputs, mech. Manual operation

Manufacturer: BESKNX

Article no.: 20002773

EAN: 8436596833036

Manufacturer item number: CT416420

Manufacturer type: 6E4S-16A-K

Weight: 0,188 kg

Available on request

218,21 €

incl. VAT + shipping

pcs

KNX universal actuator with 6 digital inputs and 4 digital outputs. The outputs operate simultaneously or independently in different modes (binary outputs, blinds, fan coil units, etc.). The device features 6 low-voltage digital inputs for connecting conventional push buttons or switches. Arithmetic logic unit (ALU). PARAM: Programming via ETS parameter application. Technical specifications: Power supply: 29 V DC from the KNX bus. Consumption: 9 mA from the KNX bus. Switching capacity: 16 A at 230 V AC output. Mounting: DIN rail (4 modules). For further technical specifications, please refer to the manufacturer's data sheet in the documentation.

Binary inputs integrated: Yes
Blinds: Yes
Brand: BESKNX
Class: Universal actuators
Different bus system: -
Different phases can be connected: Yes
Division units: 4
Fan coil: Yes
KNX: Yes
Manufacturer item number: CT416420
Manufacturer type: 6E4S-16A-K
Mounting type: Series installation
Number of binary inputs: 6
Number of blind outputs: 2
Number of outputs: 4
old Voltus number: 1662694
Rated voltage outputs: 230V AC
Size of connection terminal in mm2: 4.00
Switch: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt (en)

Manufacturer information

BESKNX
BES KNX
Parque Tecno. d. Asturias, Parc. 50
33428 Llanera – Asturia
ES

export@besknx.com
besknx.com/website/en/
