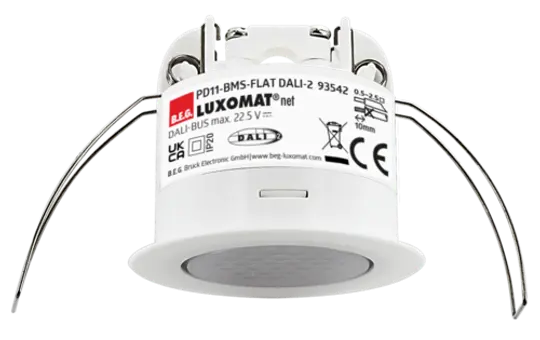

B.E.G. 93542 DALI-2 Ceiling Presence Detector PD11-BMS-FLAT-DE white matt

B.E.G. 93542 DALI-2 Ceiling Presence Detector PD11-BMS-FLAT-DE | white matt

Manufacturer: B.E.G.
Article no.: 20051367
EAN: 4007529935420
Manufacturer item number: 93542
Manufacturer type: PD11-BMS-FLAT-DE
Weight: 0,095 kg
Available on request
Electrical appliance take-back
pcs
Especially flat DALI-2 multisensor (input device) with only 0.85 mm visible installation height.


DALI-2 certified product. Instance 0 provides information regarding room occupancy and motion detection according to IEC 62386 Part 303 on the DALI bus. With accessories for flush mounting in ceilings and exposed concrete.


Individual sensitivity adjustment of the PIR sensor.


Application examples: underground car parks, entrance areas, corridors/hallways, staircases, small offices, open-plan offices, conference rooms.


Technical data:


  • Voltage: from the DALI bus, max. 22.5 V DC

  • Dimensions: Ø 52 x 48 mm

  • Parameterisation: via DALI bus using an application that supports DALI multisensors according to IEC 62386 Parts 101, 103, 303 and 304

  • Power consumption: 7 mA

  • Settling time: 200 ms

  • Detection range: horizontal 360° (ceiling mounting)

  • Range: max. Ø 9 m lateral, max. Ø 6 m frontal, max. Ø 3 m seated activity

  • Light measurement: 0 - 4095 lux, mixed light measurement

  • Housing: polycarbonate, UV resistant

  • Colour: matte white, similar to RAL 9010

Acoustic sensor
No
Air pressure sensor
No
Area
Inside
BAB-Tec
No
Bluetooth
No
Brand
B.E.G.
Brightness sensor
Yes
Casambi
No
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI
Yes
DALI-2
Yes
Detection area
circular
Detection area diameter in m
9
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
6
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Installation height in m
5
Installation location
Ceiling
Integrated constant light control
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
LED night light
No
Manufacturer item number
93542
Manufacturer type
PD11-BMS-FLAT-DE
Manufacturer's colour
white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Installation
Protection class (IP)
IP20
Reach laterally in m
9
Remote controllable
No
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
