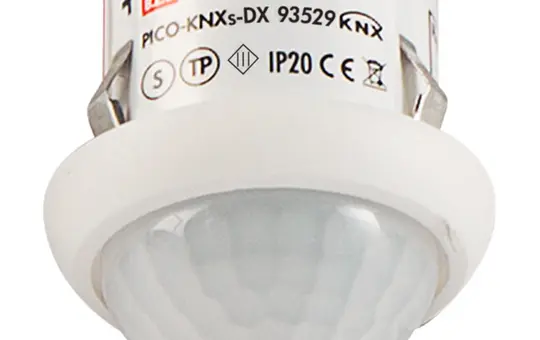

B.E.G. 93529 KNX Presence Detector PICO Deluxe, Secure, DE | white

B.E.G. 93529 KNX Presence Detector PICO | Deluxe, Secure, DE | white

Manufacturer: B.E.G.
Article no.: 20043578
EAN: 4007529935291
Manufacturer item number: 93529
Manufacturer type: PICO-KNXs-DX
Weight: 0,039 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
KNX mini presence detector with integrated bus coupler. Individual sensitivity adjustment of the PIR sensor. Mixed light measurement using internal and external (optional) light sensors. Intelligent semi-automatic mode, presence-independent control mode (dusk sensor), fully automatic mode. Controls up to three light groups via offset (external influence possible). Extensive optimisation options for light measurement. Manual influence via external KNX push-buttons possible. Variable safety delay after switching off the lights. Switch-off pre-warning. Application examples: offices, meeting rooms, schools, kindergartens, hospitals.

Technical data:
Voltage: via KNX bus.
Dimensions: Ø 33 x 32 mm.
Current consumption: 12 mA.
Detection range: horizontal 360° (ceiling mounting).
Range: max. Ø 10 m lateral, max. Ø 6 m frontal, max. Ø 4 m seated activity.
Brightness setpoint: 5 – 2000 lux.
Protection rating/class: IP20 / class III.
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
BAB-Tec
No
Bluetooth
No
Brand
B.E.G.
Brightness sensor
Yes
Casambi
No
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
Yes
DALI
No
DALI-2
No
Detection angle in °
360
Detection area
circular
Detection type/sensor type
Passive infrared
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
5
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Installation height in m
2.5
Installation location
Ceiling
Integrated constant light control
Yes
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
LED night light
No
Manufacturer item number
93529
Manufacturer type
PICO-KNXs-DX
Manufacturer's colour
white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
cavity wall
Number of areas
1
Protection class (IP)
IP20
Reach laterally in m
5
Remote controllable
Yes
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
Yes
Supply voltage
BUS voltage
Surface
matt
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
