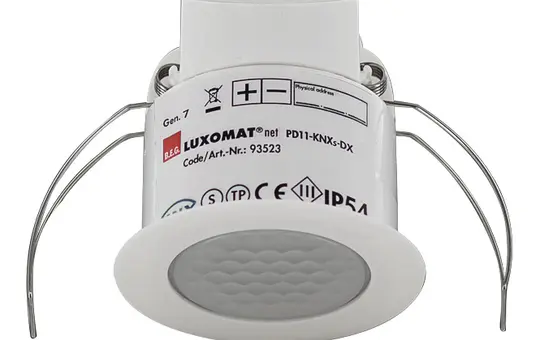

B.E.G. 93523 KNX Presence Detector PD11-FLAT Secure, HCL/RGB

B.E.G. 93523 KNX Presence Detector PD11-FLAT | Secure, HCL/RGB

Manufacturer: B.E.G.
Article no.: 20033040
EAN: 4007529935239
Manufacturer item number: 93523
Manufacturer type: PD11-KNXs-FLAT-DX
Weight: 0,104 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Especially flat KNX presence detector with integrated KNX BUS coupler.

KNX Secure capable. Master-slave operation for extending the detection range. Individual sensitivity adjustment of the PIR sensor. Intelligent semi-automatic operation, presence-independent control operation (dusk sensor), fully automatic operation.

1 x light (controllable or switchable), 1 x slave output, 3 x HVAC outputs (independent). Control of up to three light groups via offset (external influence possible). Extensive optimisation options for light measurement. Output of the measured light value on the bus. Manual influence possible via external KNX pushbutton.

Technical data: Voltage: via KNX BUS. Dimensions: Ø 52 x 48 mm. Current consumption: 12 mA. Detection range: horizontal 360° (ceiling mounting). Range: max. Ø 9 m lateral, max. Ø 6 m frontal, max. Ø 3 m seated activity. Temperature measurement range: -5 °C to +45 °C. Brightness setpoint: 5 – 2000 lux.
Air pressure sensor
No
Area
Inside
BAB-Tec
No
Bluetooth
No
Brand
B.E.G.
Brightness sensor
Yes
Casambi
No
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
Yes
DALI
No
DALI-2
No
Detection angle in °
360
Detection area
circular
Detection type/sensor type
Passive infrared
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
4.5
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Installation height in m
2.5
Installation location
Ceiling
Integrated constant light control
Yes
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
LED night light
No
Manufacturer item number
93523
Manufacturer type
PD11-KNXs-FLAT-DX
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
cavity wall
Number of areas
1
Protection class (IP)
IP54
Reach laterally in m
4.5
Remote controllable
Yes
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
