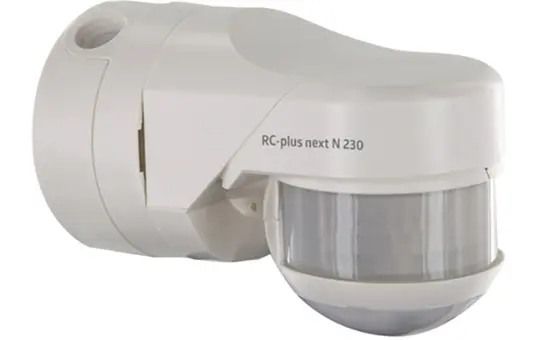

B.E.G. 93331 Motion Detector RC plus next N 230° | white

B.E.G. 93331 Motion Detector RC plus next N | 230° | white

Manufacturer: B.E.G.
Article no.: 20011379
EAN: 4007529933310
Manufacturer item number: 93331
Manufacturer type: RC-plus next N 230 weiß
Weight: 0,34 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Motion detector white RC-plus next N230 ws

Type of device: Motion detector, sensor type passive infrared, pet immunity, crawl-under protection/rear field monitoring, optimal mounting height 2.5 m, max. range to one side 20 m, max. presence area 32 m², max. frontal range 6 m, detection field diameter on floor 40 m, remote controllable, adjustable response sensitivity, adjustable response brightness, teach function for response brightness, suitable for ceiling mounting, suitable for wall mounting, surface-mounted installation, material plastic, material quality other, halogen-free, surface protection untreated, surface finish matt, colour white, RAL number (similar) 9010, protection rating (IP) IP54, impact resistance IK03, voltage type AC, frequency 50 ... 60 Hz, rated voltage 230 V, min. switch-on time 15 s, max. switch-on time 16 min, switch-off delay 0 s, switch-on delay 0 s, sensor swivel range horizontal -45 ... 45°, sensor swivel range vertical -20 ... 20°.
Acoustic sensor
No
Air pressure sensor
No
Area
Outside
Brand
B.E.G.
Brightness sensor
Yes
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
Yes
DALI-2
No
Detection angle in °
230
Detection area
circular
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
6
Humidity sensor
No
Installation height in m
2.5
Integrated constant light control
No
LED night light
No
Manufacturer item number
93331
Manufacturer type
RC-plus next N 230 weiß
Manufacturer's colour
white
Material
Plastic
Mounting type
Surface-mounted
Number of areas
1
Protection class (IP)
IP54
Reach laterally in m
20
Remote controllable
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
Yes
Surface
matt
Temperature sensor
No
VOC sensor
No
