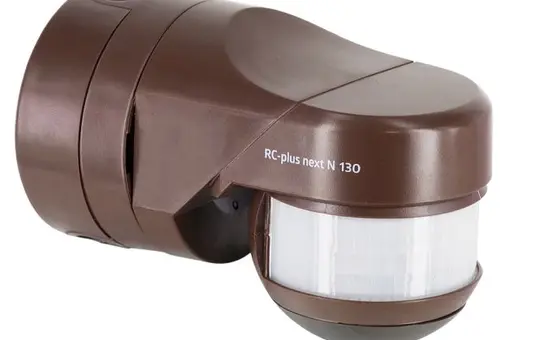

B.E.G. 93324 Motion Detector RC plus next N 130° | brown

B.E.G. 93324 Motion Detector RC plus next N | 130° | brown

Manufacturer: B.E.G.
Article no.: 20011380
EAN: 4007529933242
Manufacturer item number: 93324
Manufacturer type: RC-plus next N 130 braun
Weight: 0,34 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Motion detector brown RC-plus next N130 br

Type: Motion detector, sensor type passive infrared, pet immunity, crawl-under protection/rear field monitoring, optimal mounting height 2.5 m, max. range to one side 20 m, max. presence area 18 m², max. frontal range 6 m, detection field diameter on floor 36 m, remote controllable, adjustable response sensitivity, adjustable response brightness, teach function for response brightness, suitable for ceiling mounting, suitable for wall mounting, surface-mounted installation, material plastic, material quality other, halogen-free, surface protection untreated, surface finish matt, RAL number (similar) 8014, protection rating (IP) IP54, impact resistance IK03, voltage type AC, frequency 50 ... 60 Hz, nominal voltage 230 V, min. switch-on time 15 s, max. switch-on time 16 min, switch-off delay 0 s, switch-on delay 0 s, sensor swivel range horizontal -45 ... 45°, sensor swivel range vertical -20 ... 20°, response brightness 2 ... 500 lx.
Acoustic sensor
No
Air pressure sensor
No
Area
Outside
Brand
B.E.G.
Brightness sensor
Yes
Class
Motion detector
CO2 sensor
No
Colour
brown
Crawl protection
Yes
DALI-2
No
Detection angle in °
130
Detection area
circular
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
6
Humidity sensor
No
Installation height in m
2.5
Integrated constant light control
No
LED night light
No
Manufacturer item number
93324
Manufacturer type
RC-plus next N 130 braun
Manufacturer's colour
brown
Material
Plastic
Mounting type
Surface-mounted
Number of areas
1
Protection class (IP)
IP54
Reach laterally in m
20
Remote controllable
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
Yes
Surface
matt
Temperature sensor
No
VOC sensor
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
B.E.G.
B.E.G. Brück Electronic GmbH
Gerberstr. 33
51789 Lindlar
DE

vertrieb@beg.de
www.beg-luxomat.com/de/
