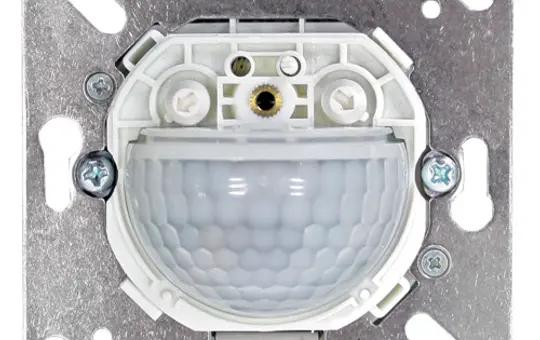

B.E.G. 92667 LUXOMAT Wall Motion Sensor Indoor 180 Reed relay, 2-fold

B.E.G. 92667 LUXOMAT Wall Motion Sensor Indoor 180 | Reed relay, 2-fold

Manufacturer: B.E.G.
Article no.: 20032641
EAN: 4007529926671
Manufacturer item number: 92667
Manufacturer type: 92667
Weight: 0,113 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Wall-mounted motion detector with acoustic sensor and an operating voltage of 11-48 V. One potential-free switching channel, individually adjustable acoustic sensor, automatic extension of the delay time through sounds. Manual switching via button possible. Available with frame (inner cover dimension 60 x 60 mm) or without frame for combination with cover frames (inner cover dimension 50 x 50 mm) in 5 different colours. Can be used with central plates in common frame systems of various manufacturers. Application examples: entrance areas, corridors/hallways, staircases, toilets, storage/technical rooms.

Technical data:
Voltage: 11 – 48 V AC / DC
Dimensions: without frame 70 x 70 x 61 mm
Detection range: horizontal 180° (wall mounting)
Range: max. 10 m sideways, max. 3 m frontal
Monitored area with tangential movement: 150 m² / 1.1 m mounting height
Protection rating/class: IP20 / Class II
Ambient temperature: -25 °C to +50 °C
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
Brand
B.E.G.
Brightness sensor
Yes
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI-2
No
Detection area
circular
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
3
Humidity sensor
No
Installation height in m
1.1
Integrated constant light control
No
LED night light
No
Manufacturer item number
92667
Manufacturer type
92667
Material
Plastic
Mounting type
flush-mounted
Number of areas
150
Protection class (IP)
IP20
Reach laterally in m
10
Remote controllable
No
suitable for ceiling mounting
No
suitable for installation in switch ranges
No
suitable for wall mounting
Yes
Surface
matt
Temperature sensor
No
VOC sensor
No
