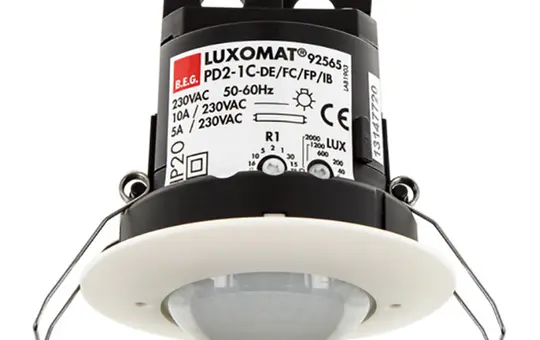

B.E.G. 92565 LUXOMAT Ceiling Presence Detector PD2-M-1C | Ceiling installation

Manufacturer: B.E.G.
Article no.: 20010553
EAN: 4007529925650
Manufacturer item number: 92565
Manufacturer type: PD2-M-1C-DE
Weight: 0,21 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
Presence detector PD2-M-1C-DE with a potential-free contact. Designed as a master device, one channel for switching lighting. Expansion of the detection area is possible with slave devices. Manual switching via push button is possible. Application examples: storage/technical rooms, small offices, entrance areas, corridors, stairwells, toilets, open-plan offices, conference rooms.

Technical data: Voltage: 110 – 240 V AC 50 / 60 Hz. Dimensions: Ø 80 x 85 mm. Detection area: horizontal 360° (ceiling mounting). Range: max. Ø 10 m lateral, max. Ø 6 m frontal, max. Ø 4 m seated activity. Monitored area with tangential movement: 78 m² / 2.5 m mounting height. Protection rating/class: IP20 / Class II. Impact resistance level: IK05. Ambient temperature: -25 °C to +50 °C.
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
Brand
B.E.G.
Brightness sensor
Yes
Class
Presence detector
CO2 sensor
No
Colour
White
Crawl protection
Yes
DALI-2
No
Detection angle in °
360
Detection area
circular
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
6
Humidity sensor
No
Installation height in m
2.5
Integrated constant light control
No
LED night light
No
Manufacturer item number
92565
Manufacturer type
PD2-M-1C-DE
Material
Plastic
Number of areas
1
Protection class (IP)
IP20
Reach laterally in m
5
Remote controllable
Yes
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
VOC sensor
No
