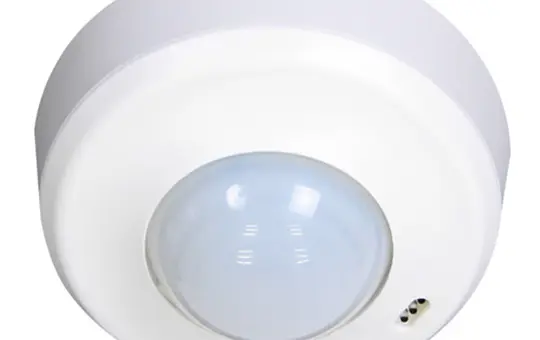

B.E.G. 92550 LUXOMAT Ceiling Presence Detector PD2-M-1C Surface-mounted

B.E.G. 92550 LUXOMAT Ceiling Presence Detector PD2-M-1C | Surface-mounted

Manufacturer: B.E.G.
Article no.: 20010554
EAN: 4007529925506
Manufacturer item number: 92550
Manufacturer type: PD2-M-1C-AP
Weight: 0,22 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Presence Detector PD2-M-1C-AP Version Presence detector, sensor type passive infrared, crawl-under protection/backfield monitoring, optimal mounting height 2.5 m, max. range to one side 5 m, max. presence area 12 m², max. frontal range 6 m, detection field diameter on floor 10 m, remote controllable, response sensitivity adjustable, response brightness adjustable, teach function for response brightness, suitable for ceiling mounting, mounting type surface-mounted, material plastic, material quality other, surface protection untreated, surface finish matt, colour white, RAL number (similar) 9010, protection rating (IP) IP20, impact resistance IK05, voltage type AC, frequency 50 ... 60 Hz, rated voltage 240 V, min. switch-on duration 15 s, max. switch-on duration 30 min, switch-off delay 0 s, switch-on delay 0 s, detection angle horizontal 0 ... 360°, response brightness 20 ... 2000 lx, max. switching capacity 2300 W, max. switching capacity LED 300 W, temperature -25 ... 50 °C, number of switching zones 78.
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
Brand
B.E.G.
Brightness sensor
Yes
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
Yes
DALI-2
No
Detection area
circular
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
6
Humidity sensor
No
Installation height in m
2.5
Integrated constant light control
No
LED night light
No
Manufacturer item number
92550
Manufacturer type
PD2-M-1C-AP
Material
Plastic
Mounting type
Surface-mounted
Number of areas
1
Protection class (IP)
IP20
Reach laterally in m
5
Remote controllable
Yes
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
VOC sensor
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
B.E.G.
B.E.G. Brück Electronic GmbH
Gerberstr. 33
51789 Lindlar
DE

vertrieb@beg.de
www.beg-luxomat.com/de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
