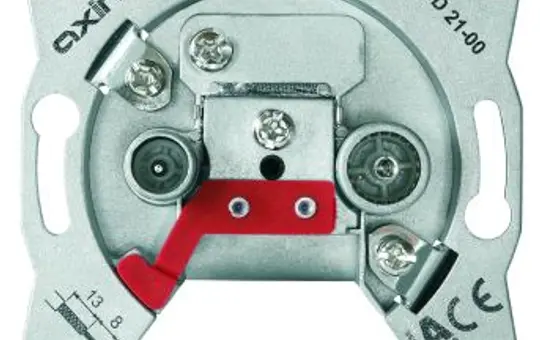

AXING BSD 21-01 Hyper broadband antenna socket 2-fold, hyper-broadband, stitch

AXING BSD 21-01 Hyper broadband antenna socket | 2-fold, hyper-broadband, stitch

Manufacturer: AXING
Article no.: 20044889
EAN: 7611682002423
Manufacturer item number: BSD 21-01
Manufacturer type: BSD02101
Weight: 0,106 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
BSD 21-01 Hyper Wideband Branch Socket 5. Technical Data:


- Return channel compatible 5...65 MHz

- Installation-friendly, new improved cable holder, foldable connection cover

- Surface refined

- For all common switch programmes.


Shielding level: EN 50083 - 2/A1, Class A

Coupling type: Distributor

Frequency range: 5...2200 MHz

TV1 connection (forward path|return channel): 47/85...2200 MHz | 5...65 MHz

Connection attenuation (forward path|return channel): 5 dB

TV2/Radio connection (forward path|return channel): 47/85...2200 MHz | 5...65 MHz

Connection attenuation (forward path|return channel): 5 dB

Through attenuation (up to 862 MHz|up to 2200 MHz): Branch socket

Internal decoupling: ≥ 20 dB

DC pass-through/main line: yes

Usable cables: 0.63...1.13 mm inner conductor | 4.70...7.35 mm outer diameter

Dimensions approx.: 71 × 67 × 34 mm.
Brand
AXING
Class
Antenna sockets
Configuration
Stitch box
Manufacturer item number
BSD 21-01
Manufacturer type
BSD02101
Series
A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero | ClassiX | E1 | E2 | E3 | Esprit | Event | Standard 55 | Studio | S-Color | Flächenschalter | TX_44 | Allw
Manufacturer information
AXING
AXING AG
Gewerbehaus Moskau 314b
8262 Ramsen
CH

info@axing.com
axing.com/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
Recycling & disposal
Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
