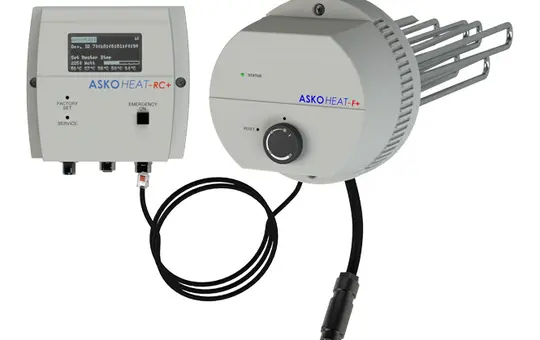

ASKOMA AHF180-TI-plus-5.8 Flange Heating Rod ASKOHEAT+2.0 7-stage, 400 V, 5.2 KW

ASKOMA AHF180-TI-plus-5.8 Flange Heating Rod ASKOHEAT+2.0 | 7-stage, 400 V, 5.2 KW

Manufacturer: ASKOMA
Article no.: 20057579
Manufacturer item number: 012-6824
Manufacturer type: AHF180-TI-plus-5.8
Weight: 4,56 kg
Available on request
Electrical appliance take-back
pcs
The ASKOHEAT-F+ 2.0 serves as an auxiliary heater for drinking and heating water in photovoltaic systems to optimise self-consumption.

It consists of three U-shaped heating rods, which are insulated and mounted in a steel flange. The heating element has an unheated zone of 70 mm and is equipped with a mechanical temperature controller as well as a shatterproof temperature limiter.

The supplied control unit enables the display of status information and errors. The heating element can be controlled via Modbus-TCP/-RTU in seven power levels and communicates with an energy meter to convert produced energy into heat.

Additional functions include legionella protection, the possibility of minimum temperature control, and connection to energy managers for optimal use of PV energy.

The device has a maximum operating temperature of 110 °C and meets protection class IP21.
Brand
ASKOMA
Class
heating elements
Manufacturer item number
012-6824
Manufacturer type
AHF180-TI-plus-5.8
Power in kW
5.8
Voltage in V
400
