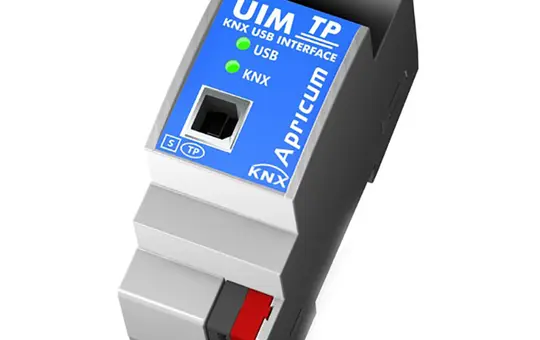

APRICUM UIMtp KNX USB interface | REG

Manufacturer: APRICUM

Article no.: 20003164

Manufacturer item number: UIMtp

Manufacturer type: UIMtp

Weight: 0,07 kg

Available on request

130,88 €

incl. VAT + shipping

pcs

UIMtp enables a bidirectional connection between a PC and the KNX TP. The USB interface allows communication not only for addressing and parameterizing bus devices with ETS, but also for visualization, logging, and diagnostics. FALCON-based software (such as ETS3 and EITT) uses the flexible Common EMI protocol to communicate with the connected devices via UIMtp. Specifications include access to any bus device, galvanically isolated access to KNX TP, USB 2.0 with Type B connector, ETS4 and higher database availability, support for long telegrams, use without FALCON driver software, cEMI protocol, raw mode for diagnostics, HID profile support without a special USB driver, and low power consumption. It is a built-in module for 35 mm top-hat rails (DIN, TH35).

Brand: APRICUM
Class: KNX USB interface
Different bus system: -
Division units: 1
Installation location: distribution cabinet
KNX-USB-Interface: Yes
Manufacturer item number: UIMtp
Manufacturer type: UIMtp
old Voltus number: 1691282
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung (en)

Manufacturer information

APRICUM
APRICUM d.o.o.
Mažuranićeva 4
21312 Podstrana
HR

apricum@apricum.com
www.apricum.com

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: APRICUM
Class: KNX USB interface
Different bus system: -
Division units: 1
Installation location: distribution cabinet
KNX-USB-Interface: Yes
Manufacturer item number: UIMtp
Manufacturer type: UIMtp
old Voltus number: 1691282
Type of transmission: Cable
