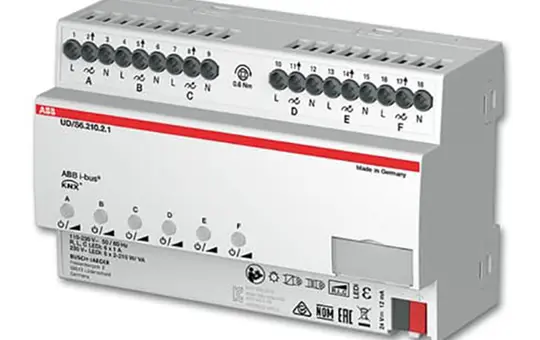

ABB UD/S6.210.2.1 KNX dimming actuator 230 V 6-fold, 210 W

ABB UD/S6.210.2.1 KNX dimming actuator 230 V | 6-fold, 210 W

Manufacturer: ABB
Article no.: 20041887
EAN: 4011395251881
Manufacturer item number: 2CKA006197A0049
Manufacturer type: UD/S6.210.2.1
Weight: 0,579 kg
In stock
Delivery: 2-3 business days
356,12 €
incl. VAT + shipping
pcs
Multi-channel universal dimming actuator optimized for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps, and dimmable halogen energy-saving lamps. Automatic load detection (can be deactivated). Separate N connection per channel. Parallel connection of the outputs is possible to increase the output power. Outputs can be connected in parallel as required. Minimum load: 2 W. Manual operation of the device is possible even without bus voltage or in an unprogrammed state. The device can be programmed even without a 230 V supply voltage. Extensive test and diagnostic functions are available via the i-bus tool. Fast parameterization in the ETS using copyable channel templates. With integrated bus coupler. Rated power at 230 V AC mains voltage: 230 V AC incandescent and halogen lamps: 6 x 210 W/VA to 1 x 800 W/VA.
Brand
ABB
Color control
-
DALI Device Type
-
Different bus system
-
Different phases can be connected
Yes
Dimming
Yes
Dimming method
Phase lead/edge
Division units
8
KNX
Yes
KNX-TP
Yes
Local/manual operation
Yes
Manufacturer item number
2CKA006197A0049
Manufacturer type
UD/S6.210.2.1
Mounting type
Series installation
Number of outputs
6
old Voltus number
1695527
Output power in W
210.00
Parallel operation of channels possible
Yes
Rated voltage outputs
230V AC
Type of transmission
Cable
Manufacturer information
ABB
ABB Stotz-Kontakt GmbH
Eppelheimer Straße 82
69123 Heidelberg
DE

info.bje@de.abb.com
new.abb.com/de
